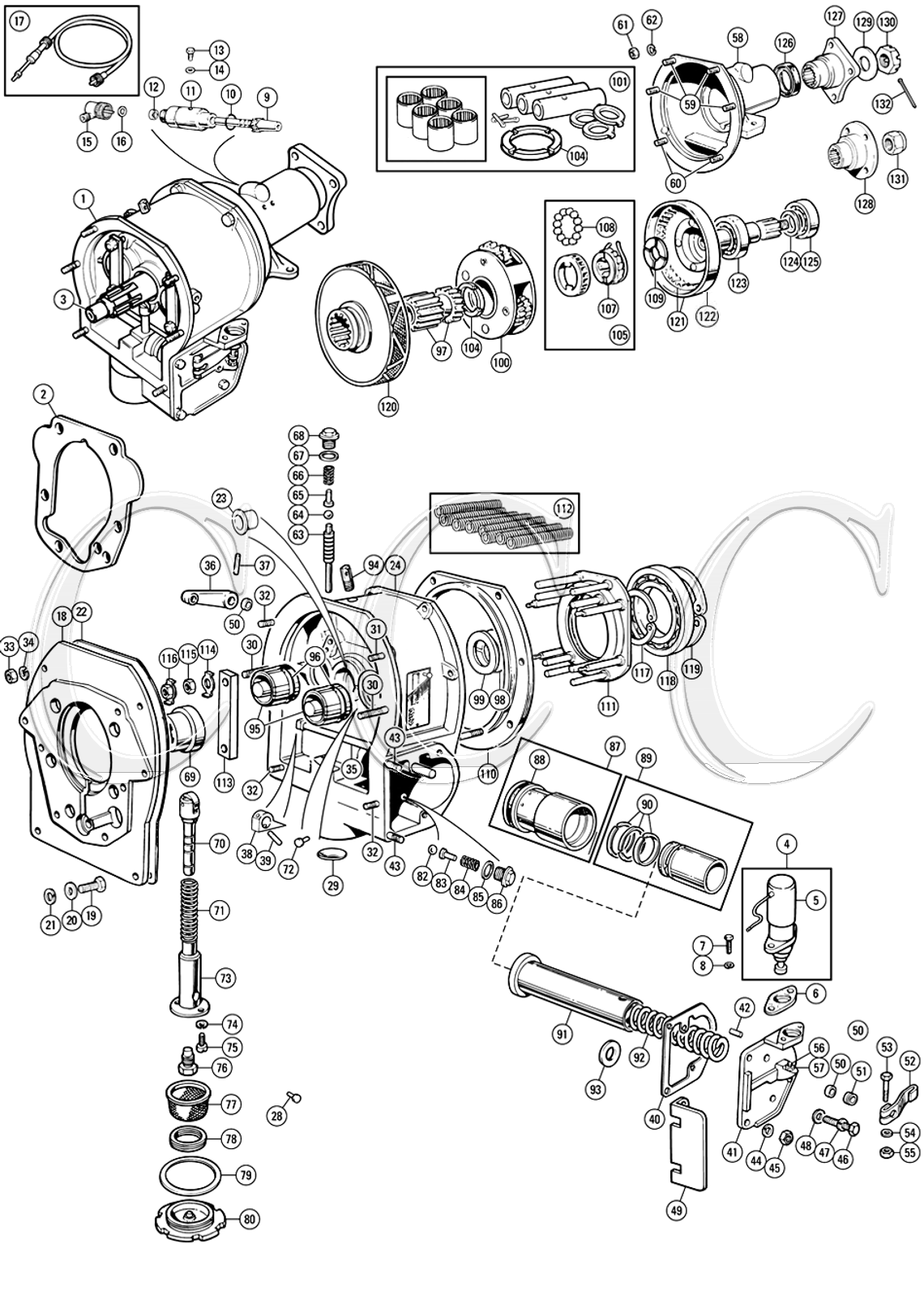

'A' TYPE OVERDRIVE
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 1 | 312373R | OVERDRIVE A TYPE TR4-6 COU |
1 | reconditioned | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 2 | 132465 | GASKET REAR GEARBOX |
1 | CHF 5.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 4 | 508794 | SOLENOID A-TYPE OVERDRIVE |
1 | CHF 81.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 5 | 109521 | CAP SOLENOID A AND D-TYPE OVERDRIVE |
1 | CHF 50.85 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 6 | 7H8196 | SOLENOID GASKET |
1 | CHF 3.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 7 | 53K126 | SCREW HEX HEAD 10/32 |
2 | CHF 1.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 8 | WL700101 | WASHER SPRING 3/16 |
2 | CHF 0.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 9 | 147965 | PINION, SPEEDO DRIVE, 15 TEETH |
1 | CHF 60.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 10 | 147751 | O RING HOUSING TO GEARBOX EXTENSION |
1 | CHF 4.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 11 | 146542 | SPEEDO DRIVE PINION HOUSING |
1 | CHF 79.20 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 12 | NKC105A | OIL SEAL SPEEDODRIVE |
1 | CHF 18.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 13 | 506071 | SCREW |
1 | CHF 12.20 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 14 | 500469 | COPPER WASHER 5/8 OD |
1 | CHF 3.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 15 | 120694 | ANGLE DRIVE, SPEEDOMETER |
1 | CHF 98.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 16 | 3H550 | COPPER WASHER 7/16X0.7 |
1 | CHF 1.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 19 | 155542 | SCREW-5/16UNC SELF LOCKING |
6 | alternatives | availability request | |
| 19 | SH505071 | SCREW 5/16" UNC X 7/8" |
6 | alternatives | CHF 1.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 20 | GHF301 | WASHER 5/16 X 5/8 M8 |
6 | use with 'Locwel' screw | CHF 0.40 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 21 | GHF332 | WASHER SPRING 5/16 |
6 | use with plain screw | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 22 | 502556 | GASKET OVERDRIVE FLANGE |
1 | CHF 3.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 23 | 503159BUSH | BUSH BRASS OVERDRIVE CASING PAIR |
1 | pair | CHF 100.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 24 | 503159 | CASING ASSEMBLY |
1 | TR5, TR250, TR6 To (g) CD15651, serial no. 22/61753 | availability request | |
| 24 | 520679 | CASING, OVERDRIVE, FRONT |
1 | TR6 From (g) CD15652 serial no. 22/61985 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 28 | FAS2 | RIVET, DRIVE, SECURING NAMEPLATE |
2 | CHF 1.80 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 29 | 500570 | PLUG WELCH |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 30 | 500576 | STUD 2-5/8 ATYPE OVERDRIVE |
2 | 2 5/8" long | CHF 6.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 31 | 500666 | STUD 1IN A TYPE OVERDRIVE |
1 | 1" long | CHF 6.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 32 | TE605105 | STUD, 5/16" UNF X 1.1/4" |
3 | 1 1/4" long | CHF 6.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 33 | GHF201 | NUT 5/16 UNF |
6 | CHF 0.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 34 | GHF332 | WASHER SPRING 5/16 |
6 | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 35 | 513908 | VALVE SHAFT OVERDRIVE |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 36 | 513909 | LEVER ADJUSTMENT |
1 | CHF 17.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 37 | 513888 | MILLS PIN NCA |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 38 | 513910 | CAM -OD |
1 | CHF 14.35 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 39 | 500593 | PIN -CAM NCA |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 40 | 500645 | GASKET SOLENOID BRACKET TO CASING |
1 | CHF 1.90 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 41 | 502566 | SOLENOID MOUNTING PLATE |
1 | CHF 132.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 42 | DP408 | DOWEL PEG - CLUTCH |
1 | CHF 3.35 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 43 | FHS2512 | STUD 5/16UNF X 1.5IN |
2 | CHF 3.40 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 44 | GHF332 | WASHER SPRING 5/16 |
2 | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 45 | GHF201 | NUT 5/16 UNF |
2 | CHF 0.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 46 | 103268 | SCREW A OVERDRIVE SOL NCA |
2 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 47 | GHF332 | WASHER SPRING 5/16 |
2 | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 48 | GHF301 | WASHER 5/16 X 5/8 M8 |
2 | CHF 0.40 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 49 | 502569 | STONE GUARD-OVERDRIVE TR2-6 |
1 | CHF 17.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 50 | 500594 | O RING O/DRIVE |
2 | CHF 2.90 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 51 | 502567 | A OVERDRIVE SHAFT COLLAR |
1 | CHF 12.80 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 52 | 502568 | OPERATING LEVER |
1 | CHF 41.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 53 | 503163K | BOLT/NUT/WASHER SET |
1 | CHF 3.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 54 | GHF300 | WASHER 1/4 X 1/2 OD |
1 | CHF 0.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 55 | 503164 | NUT |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 56 | 513918 | ADJUSTER SCREW 'A' TYPE OVERDRIVE SOLENOID STOP |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 58 | 500655 | REAR CASING A TYPEOD |
1 | CHF 354.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 59 | FHS2513 | STUD 5/16 UNF X 1.625 |
4 | CHF 2.70 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 60 | 500579 | STUD |
2 | CHF 5.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 61 | GHF201 | NUT 5/16 UNF |
6 | CHF 0.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 62 | GHF332 | WASHER SPRING 5/16 |
6 | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 63 | 500658 | OVERDRIVE VALVE |
1 | CHF 64.35 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 64 | BLS110 | BALLBEARING 5/16 DIA |
1 | CHF 0.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 65 | 500591 | PLUNGER |
1 | CHF 23.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 66 | 007972 | SPRING-PLUNGER VALVE |
1 | CHF 13.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 67 | 3H693 | COPPER WASHER 1/2X3/4 |
1 | CHF 1.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 68 | 506117 | PLUG OP/VALVE OVERDRIVE |
1 | CHF 56.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 69 | 500627 | CAM OVERDRIVE PUMP A TYPE |
1 | CHF 98.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 70 | 513891 | PUMP PLUNGER-A TYPE |
1 | CHF 131.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 71 | 500633 | PUMP SPRING A TYPE |
1 | CHF 16.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 72 | 500581 | GUIDE PED A-TYPE OVERDRIVE CASING |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 73 | 505507 | A TYPE OVERDRIVE PUMP BODY |
1 | CHF 195.80 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 74 | WL700101 | WASHER SPRING 3/16 |
2 | CHF 0.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 75 | UFS1194R | SCREW, OIL PUMP TO BODY |
2 | CHF 0.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 76 | 513902 | PLUG-O/D OILPUMP |
1 | CHF 21.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 78 | 513205 | MAGNET SET OF 3 D TYPE OVERDRIVE |
1 | CHF 30.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 79 | 500641 | WASHER FILTER PLUG A |
1 | CHF 2.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 82 | BLS108 | BALLBEARING 1/4 DIA |
1 | CHF 4.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 83 | 500591 | PLUNGER |
1 | CHF 23.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 84 | 007972 | SPRING-PLUNGER VALVE |
1 | CHF 13.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 85 | 3H693 | COPPER WASHER 1/2X3/4 |
1 | CHF 1.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 86 | 506117 | PLUG OP/VALVE OVERDRIVE |
1 | CHF 56.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 87 | 501908 | ACCUMULATOR HOUSING |
1 | CHF 120.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 88 | 501910 | O RING SEAL |
1 | CHF 8.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 89 | 501909 | PISTON & RINGS OVERDRIVE |
1 | CHF 116.85 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 90 | 505555 | A TYPE O/DRIVE RINGS |
1 | CHF 101.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 91 | 502563 | TUBE SPACING |
1 | CHF 54.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 92 | 515131 | SPRING-O/D ACCUMULAT |
1 | TR6 From CD15652, serial no. 22/61985 |
CHF 59.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 93 | WM58 | WASHER, PLAIN, 5/16" ID X 3/4" OD |
a/r | CHF 0.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 94 | 502560 | BREATHER FOR OVERDRIVE |
1 | |
CHF 17.35 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 95 | 513890 | PISTON A TYPE OVERDRIVE |
2 | CHF 50.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 96 | 513912 | O RING - OVERDRIVE PISTON |
2 | CHF 3.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 97 | 505549 | SUN WHEEL ASSY-A TYPE OVERDRIVE |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 98 | 500610 | THRUST WASHER FRONT |
1 | CHF 47.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 99 | 500588A | THRUST WASHER 0.113 |
a/r | 0.113/0.114" | CHF 28.55 | |
| 99 | 500588B | THRUST WASHER 0.107 |
a/r | 0.107/0.108" | CHF 28.55 | |
| 99 | 500588C | THRUST WASHER 0.101 |
a/r | 0.101/0.102" | CHF 28.55 | |
| 99 | 500588D | THRUST WASHER 0.095 |
a/r | 0.095/0.096" | CHF 28.55 | |
| 99 | 500588E | THRUST WASHER 0.090 |
a/r | 0.089/0.090" | CHF 28.55 | |
| 99 | 500588F | THRUST WASHER 0.084 |
a/r | 0.083/0.084" | CHF 28.55 | |
| 99 | 500588G | THRUST WASHER 0.077 |
a/r | 0.077/0.078" | CHF 28.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 100 | 505545SR | PLANET GEAR FOR CARRIER ASSY |
1 | TR5, TR250, TR6 To CD15651, Serial no. 22/61753 | CHF 132.15 | |
| 100 | 518600 | CARRIER ASS PLANET GEARS |
1 | TR6 From CD15652 - Serial no. 22/61985 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 101 | 505546 | PLANET BEARING/SPINDLE SET ATYPE |
1 | CHF 166.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 105 | BAU2061A | SPRAG CLUTCH ASSY LH |
1 | CHF 186.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 107 | 513208 | LOCK RING OVERDRIVE |
1 | CHF 2.40 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 108 | 506063A | ROLLER SET (12 PCES) |
1 | CHF 20.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 109 | 500613A | THRUST WASHER |
1 | minimal acceptable thickness is 0.122" | CHF 43.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 110 | 502555 | BRAKE RING |
1 | CHF 254.35 | ||
| 110 | 502555SR | A TYPE OVERDRIVE BRAKE RING |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 111 | 500660 | OVERDRIVE THRUST RING + PINS 7H5861 |
1 | clutch thrust with pins | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 112 | 502554 | SET OF 8-O/D SPRINGS |
1 | (set of 8) | CHF 102.05 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 113 | 500587 | BRIDGE PIECE |
2 | CHF 34.70 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 114 | JS616A | NUT, LOCKING, NYLOC, 1/4" |
4 | CHF 2.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 115 | GHF200 | NUT 1/4 UNF |
4 | CHF 0.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 116 | JS616A | NUT, LOCKING, NYLOC, 1/4" |
4 | alternative to plain nut & tab washer | CHF 2.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 117 | 500636 | CIRCLIP A-TYPE CLUTCH |
1 | CHF 10.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 118 | 500640 | BEARING OVERDRIVE CLUTCH |
1 | CHF 36.70 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 119 | 500637 | CIRCLIP OVERDRIVE |
1 | CHF 15.00 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 120 | 520975R | SLIDING MEMBER ATYPE |
1 | alternatives - reconditioned/exchange - standard material | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 121 | 500602 | OVERDRIVE ANNULUS TR2-6 A-TYPE COU S/C 75.00 |
1 | availability request |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 122 | 500602X | RING OUTER U/D CLUCH |
1 | CHF 152.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 123 | 217325A | BEARING |
1 | CHF 30.20 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 124 | 500623E | OVERDRIVE ADJ WASHER .146IN |
a/r | 0.146" | CHF 23.60 | |
| 124 | 500623F | OVERDRIVE ADJ WASHER .151 |
a/r | 0.151" | CHF 26.65 | |
| 124 | 500623G | OVERDRIVE ADJ WASHER .156 |
a/r | 0.156" | CHF 25.20 | |
| 124 | 500623H | OVERDRIVE ADJ WASHER .161 |
a/r | 0.161" | CHF 25.20 | |
| 124 | 500623J | OVERDRIVE ADJ WASHER .166 |
a/r | 0.166" | CHF 35.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 125 | SP75G | BEARING, MAINSHAFT, REAR |
1 | CHF 21.95 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 126 | GHS179 | OIL SEAL, REAR HUB |
1 | CHF 4.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 128 | 518109 | REAR FLANGE TR2-6 GEARBOX |
1 | TR6 From (g) CD15652, serial no. 22/61985 | CHF 102.85 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 129 | WP24 | WASHER, PLAIN, 3/4" ID X 1.3/8" OD |
1 | CHF 2.05 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 130 | 057868 | 3/4IN UNF SLOTTED NUT |
1 | alternatives | CHF 31.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 131 | NKC81 | NUT, NYLOC, 3/4" UNF |
1 | alternatives | CHF 15.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 132 | GHF504 | SPLITPIN 1/8 X 2IN |
1 | use with slotted nut | CHF 0.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 1 | 312373R |
OVERDRIVE A TYPE TR4-6 COU
|
1 | reconditioned | availability request | |
| 2 | 132465 |
GASKET REAR GEARBOX
|
1 | CHF 5.15 | ||
| 3 | 208052 |
M/SHAFT OVERDRIVE TR4-6
|
1 | TR5, TR250, TR6 To (g) CD20281 | CHF 272.85 | |
| 3 | UKC1933 |
MAINSHAFT, OVERDRIVE, A TYPE, METRIC
|
1 | From CD20282 | CHF 297.50 | |
| 4 | 508794 |
SOLENOID A-TYPE OVERDRIVE
|
1 | CHF 81.95 | ||
| 5 | 109521 |
CAP SOLENOID A AND D-TYPE OVERDRIVE
|
1 | CHF 50.85 | ||
| 6 | 7H8196 |
SOLENOID GASKET
|
1 | CHF 3.60 | ||
| 7 | 53K126 |
SCREW HEX HEAD 10/32
|
2 | CHF 1.75 | ||
| 8 | WL700101 |
WASHER SPRING 3/16
|
2 | CHF 0.45 | ||
| 9 | 147965 |
PINION, SPEEDO DRIVE, 15 TEETH
|
1 | CHF 60.95 | ||
| 10 | 147751 |
O RING HOUSING TO GEARBOX EXTENSION
|
1 | CHF 4.10 | ||
| 11 | 146542 |
SPEEDO DRIVE PINION HOUSING
|
1 | CHF 79.20 | ||
| 12 | NKC105A |
OIL SEAL SPEEDODRIVE
|
1 | CHF 18.25 | ||
| 13 | 506071 |
SCREW
|
1 | CHF 12.20 | ||
| 14 | 500469 |
COPPER WASHER 5/8 OD
|
1 | CHF 3.50 | ||
| 15 | 120694 |
ANGLE DRIVE, SPEEDOMETER
|
1 | CHF 98.55 | ||
| 16 | 3H550 |
COPPER WASHER 7/16X0.7
|
1 | CHF 1.75 | ||
| 17 | GSD109 |
CABLE SPEEDO 63"
|
1 | RHD | CHF 32.70 | |
| 17 | GSD169 |
CABLE SPEEDO TR5-6 69IN
|
1 | LHD | CHF 32.55 | |
| 18 | 208098 |
ADAPTOR PLATE-A TYPE
|
1 | TR5, TR250, TR6 To CD15651 | CHF 136.95 | |
| 18 | 500654 |
USE 208098
|
1 | TR6 From CD15652 | ||
| 19 | 155542 |
SCREW-5/16UNC SELF LOCKING
|
6 | alternatives | availability request | |
| 19 | SH505071 |
SCREW 5/16" UNC X 7/8"
|
6 | alternatives | CHF 1.65 | |
| 20 | GHF301 |
WASHER 5/16 X 5/8 M8
|
6 | use with 'Locwel' screw | CHF 0.40 | |
| 21 | GHF332 |
WASHER SPRING 5/16
|
6 | use with plain screw | CHF 1.10 | |
| 22 | 502556 |
GASKET OVERDRIVE FLANGE
|
1 | CHF 3.75 | ||
| 23 | 503159BUSH |
BUSH BRASS OVERDRIVE CASING PAIR
|
1 | pair | CHF 100.45 | |
| 24 | 503159 |
CASING ASSEMBLY
|
1 | TR5, TR250, TR6 To (g) CD15651, serial no. 22/61753 | availability request | |
| 24 | 520679 |
CASING, OVERDRIVE, FRONT
|
1 | TR6 From (g) CD15652 serial no. 22/61985 | availability request | |
| 25 | 1 | brass | ||||
| 26 | 1 | aluminium | ||||
| 27 | 1 | |||||
| 28 | FAS2 |
RIVET, DRIVE, SECURING NAMEPLATE
|
2 | CHF 1.80 | ||
| 29 | 500570 |
PLUG WELCH
|
1 | availability request | ||
| 30 | 500576 |
STUD 2-5/8 ATYPE OVERDRIVE
|
2 | 2 5/8" long | CHF 6.65 | |
| 31 | 500666 |
STUD 1IN A TYPE OVERDRIVE
|
1 | 1" long | CHF 6.75 | |
| 32 | TE605105 |
STUD, 5/16" UNF X 1.1/4"
|
3 | 1 1/4" long | CHF 6.45 | |
| 33 | GHF201 |
NUT 5/16 UNF
|
6 | CHF 0.75 | ||
| 34 | GHF332 |
WASHER SPRING 5/16
|
6 | CHF 1.10 | ||
| 35 | 513908 |
VALVE SHAFT OVERDRIVE
|
1 | availability request | ||
| 36 | 513909 |
LEVER ADJUSTMENT
|
1 | CHF 17.50 | ||
| 37 | 513888 |
MILLS PIN NCA
|
1 | availability request | ||
| 38 | 513910 |
CAM -OD
|
1 | CHF 14.35 | ||
| 39 | 500593 |
PIN -CAM NCA
|
1 | availability request | ||
| 40 | 500645 |
GASKET SOLENOID BRACKET TO CASING
|
1 | CHF 1.90 | ||
| 41 | 502566 |
SOLENOID MOUNTING PLATE
|
1 | CHF 132.45 | ||
| 42 | DP408 |
DOWEL PEG - CLUTCH
|
1 | CHF 3.35 | ||
| 43 | FHS2512 |
STUD 5/16UNF X 1.5IN
|
2 | CHF 3.40 | ||
| 44 | GHF332 |
WASHER SPRING 5/16
|
2 | CHF 1.10 | ||
| 45 | GHF201 |
NUT 5/16 UNF
|
2 | CHF 0.75 | ||
| 46 | 103268 |
SCREW A OVERDRIVE SOL NCA
|
2 | availability request | ||
| 47 | GHF332 |
WASHER SPRING 5/16
|
2 | CHF 1.10 | ||
| 48 | GHF301 |
WASHER 5/16 X 5/8 M8
|
2 | CHF 0.40 | ||
| 49 | 502569 |
STONE GUARD-OVERDRIVE TR2-6
|
1 | CHF 17.95 | ||
| 50 | 500594 |
O RING O/DRIVE
|
2 | CHF 2.90 | ||
| 51 | 502567 |
A OVERDRIVE SHAFT COLLAR
|
1 | CHF 12.80 | ||
| 52 | 502568 |
OPERATING LEVER
|
1 | CHF 41.10 | ||
| 53 | 503163K |
BOLT/NUT/WASHER SET
|
1 | CHF 3.60 | ||
| 54 | GHF300 |
WASHER 1/4 X 1/2 OD
|
1 | CHF 0.45 | ||
| 55 | 503164 |
NUT
|
1 | availability request | ||
| 56 | 513918 |
ADJUSTER SCREW 'A' TYPE OVERDRIVE SOLENOID STOP
|
1 | availability request | ||
| 57 | 513919 |
USE JN2107
|
1 | |||
| 58 | 500655 |
REAR CASING A TYPEOD
|
1 | CHF 354.60 | ||
| 59 | FHS2513 |
STUD 5/16 UNF X 1.625
|
4 | CHF 2.70 | ||
| 60 | 500579 |
STUD
|
2 | CHF 5.50 | ||
| 61 | GHF201 |
NUT 5/16 UNF
|
6 | CHF 0.75 | ||
| 62 | GHF332 |
WASHER SPRING 5/16
|
6 | CHF 1.10 | ||
| 63 | 500658 |
OVERDRIVE VALVE
|
1 | CHF 64.35 | ||
| 64 | BLS110 |
BALLBEARING 5/16 DIA
|
1 | CHF 0.95 | ||
| 65 | 500591 |
PLUNGER
|
1 | CHF 23.50 | ||
| 66 | 007972 |
SPRING-PLUNGER VALVE
|
1 | CHF 13.60 | ||
| 67 | 3H693 |
COPPER WASHER 1/2X3/4
|
1 | CHF 1.75 | ||
| 68 | 506117 |
PLUG OP/VALVE OVERDRIVE
|
1 | CHF 56.65 | ||
| 69 | 500627 |
CAM OVERDRIVE PUMP A TYPE
|
1 | CHF 98.10 | ||
| 70 | 513891 |
PUMP PLUNGER-A TYPE
|
1 | CHF 131.95 | ||
| 71 | 500633 |
PUMP SPRING A TYPE
|
1 | CHF 16.15 | ||
| 72 | 500581 |
GUIDE PED A-TYPE OVERDRIVE CASING
|
1 | availability request | ||
| 73 | 505507 |
A TYPE OVERDRIVE PUMP BODY
|
1 | CHF 195.80 | ||
| 74 | WL700101 |
WASHER SPRING 3/16
|
2 | CHF 0.45 | ||
| 75 | UFS1194R |
SCREW, OIL PUMP TO BODY
|
2 | CHF 0.75 | ||
| 76 | 513902 |
PLUG-O/D OILPUMP
|
1 | CHF 21.50 | ||
| 77 | 509884 |
GAUZE FILTER A TYPE
|
1 | TR5, TR250, TR6 To (g) CD15651, serial no. 22/61753 | CHF 50.95 | |
| 77 | 516010 |
FILTER ASSY A TYPE
|
1 | TR6 From (g) CD15652 serial no. 22/61985 | CHF 42.80 | |
| 78 | 513205 |
MAGNET SET OF 3 D TYPE OVERDRIVE
|
1 | CHF 30.30 | ||
| 79 | 500641 |
WASHER FILTER PLUG A
|
1 | CHF 2.60 | ||
| 80 | 521814 |
DRAIN PLUG A TYPE OVERDRIVE
|
1 | CHF 112.90 | ||
| 80 | 521814T |
SPANNER A TYPE PLUG
|
1 | special shaped spanner to fit drain plug without damaging lugs | CHF 59.75 | |
| 81 | 1 | |||||
| 82 | BLS108 |
BALLBEARING 1/4 DIA
|
1 | CHF 4.60 | ||
| 83 | 500591 |
PLUNGER
|
1 | CHF 23.50 | ||
| 84 | 007972 |
SPRING-PLUNGER VALVE
|
1 | CHF 13.60 | ||
| 85 | 3H693 |
COPPER WASHER 1/2X3/4
|
1 | CHF 1.75 | ||
| 86 | 506117 |
PLUG OP/VALVE OVERDRIVE
|
1 | CHF 56.65 | ||
| 87 | 501908 |
ACCUMULATOR HOUSING
|
1 | CHF 120.95 | ||
| 88 | 501910 |
O RING SEAL
|
1 | CHF 8.45 | ||
| 89 | 501909 |
PISTON & RINGS OVERDRIVE
|
1 | CHF 116.85 | ||
| 90 | 505555 |
A TYPE O/DRIVE RINGS
|
1 | CHF 101.30 | ||
| 91 | 502563 |
TUBE SPACING
|
1 | CHF 54.30 | ||
| 92 | 515131 |
SPRING-O/D ACCUMULAT
|
1 | TR6 From CD15652, serial no. 22/61985 |
CHF 59.50 | |
| 93 | WM58 |
WASHER, PLAIN, 5/16" ID X 3/4" OD
|
a/r | CHF 0.95 | ||
| 94 | 502560 |
BREATHER FOR OVERDRIVE
|
1 | |
CHF 17.35 | |
| 95 | 513890 |
PISTON A TYPE OVERDRIVE
|
2 | CHF 50.65 | ||
| 96 | 513912 |
O RING - OVERDRIVE PISTON
|
2 | CHF 3.30 | ||
| 97 | 505549 |
SUN WHEEL ASSY-A TYPE OVERDRIVE
|
1 | availability request | ||
| 98 | 500610 |
THRUST WASHER FRONT
|
1 | CHF 47.30 | ||
| 99 | 500588A |
THRUST WASHER 0.113
|
a/r | 0.113/0.114" | CHF 28.55 | |
| 99 | 500588B |
THRUST WASHER 0.107
|
a/r | 0.107/0.108" | CHF 28.55 | |
| 99 | 500588C |
THRUST WASHER 0.101
|
a/r | 0.101/0.102" | CHF 28.55 | |
| 99 | 500588D |
THRUST WASHER 0.095
|
a/r | 0.095/0.096" | CHF 28.55 | |
| 99 | 500588E |
THRUST WASHER 0.090
|
a/r | 0.089/0.090" | CHF 28.55 | |
| 99 | 500588F |
THRUST WASHER 0.084
|
a/r | 0.083/0.084" | CHF 28.55 | |
| 99 | 500588G |
THRUST WASHER 0.077
|
a/r | 0.077/0.078" | CHF 28.55 | |
| 100 | 505545SR |
PLANET GEAR FOR CARRIER ASSY
|
1 | TR5, TR250, TR6 To CD15651, Serial no. 22/61753 | CHF 132.15 | |
| 100 | 518600 |
CARRIER ASS PLANET GEARS
|
1 | TR6 From CD15652 - Serial no. 22/61985 | availability request | |
| 101 | 505546 |
PLANET BEARING/SPINDLE SET ATYPE
|
1 | CHF 166.65 | ||
| 105 | BAU2061A |
SPRAG CLUTCH ASSY LH
|
1 | CHF 186.25 | ||
| 107 | 513208 |
LOCK RING OVERDRIVE
|
1 | CHF 2.40 | ||
| 108 | 506063A |
ROLLER SET (12 PCES)
|
1 | CHF 20.75 | ||
| 109 | 500613A |
THRUST WASHER
|
1 | minimal acceptable thickness is 0.122" | CHF 43.60 | |
| 110 | 502555 |
BRAKE RING
|
1 | CHF 254.35 | ||
| 110 | 502555SR |
A TYPE OVERDRIVE BRAKE RING
|
1 | availability request | ||
| 111 | 500660 |
OVERDRIVE THRUST RING + PINS 7H5861
|
1 | clutch thrust with pins | availability request | |
| 112 | 502554 |
SET OF 8-O/D SPRINGS
|
1 | (set of 8) | CHF 102.05 | |
| 113 | 500587 |
BRIDGE PIECE
|
2 | CHF 34.70 | ||
| 114 | JS616A |
NUT, LOCKING, NYLOC, 1/4"
|
4 | CHF 2.55 | ||
| 115 | GHF200 |
NUT 1/4 UNF
|
4 | CHF 0.60 | ||
| 116 | JS616A |
NUT, LOCKING, NYLOC, 1/4"
|
4 | alternative to plain nut & tab washer | CHF 2.55 | |
| 117 | 500636 |
CIRCLIP A-TYPE CLUTCH
|
1 | CHF 10.50 | ||
| 118 | 500640 |
BEARING OVERDRIVE CLUTCH
|
1 | CHF 36.70 | ||
| 119 | 500637 |
CIRCLIP OVERDRIVE
|
1 | CHF 15.00 | ||
| 120 | 520975R |
SLIDING MEMBER ATYPE
|
1 | alternatives - reconditioned/exchange - standard material | availability request | |
| 121 | 500602 |
OVERDRIVE ANNULUS TR2-6 A-TYPE COU S/C 75.00
|
1 | availability request | ||
| 122 | 500602X |
RING OUTER U/D CLUCH
|
1 | CHF 152.55 | ||
| 123 | 217325A |
BEARING
|
1 | CHF 30.20 | ||
| 124 | 500623E |
OVERDRIVE ADJ WASHER .146IN
|
a/r | 0.146" | CHF 23.60 | |
| 124 | 500623F |
OVERDRIVE ADJ WASHER .151
|
a/r | 0.151" | CHF 26.65 | |
| 124 | 500623G |
OVERDRIVE ADJ WASHER .156
|
a/r | 0.156" | CHF 25.20 | |
| 124 | 500623H |
OVERDRIVE ADJ WASHER .161
|
a/r | 0.161" | CHF 25.20 | |
| 124 | 500623J |
OVERDRIVE ADJ WASHER .166
|
a/r | 0.166" | CHF 35.55 | |
| 125 | SP75G |
BEARING, MAINSHAFT, REAR
|
1 | CHF 21.95 | ||
| 126 | GHS179 |
OIL SEAL, REAR HUB
|
1 | CHF 4.15 | ||
| 127 | 058948 |
USE 518109
|
1 | TR5, TR250, TR6 To (g) CD15651, serial no. 22/61753 |
||
| 128 | 518109 |
REAR FLANGE TR2-6 GEARBOX
|
1 | TR6 From (g) CD15652, serial no. 22/61985 | CHF 102.85 | |
| 129 | WP24 |
WASHER, PLAIN, 3/4" ID X 1.3/8" OD
|
1 | CHF 2.05 | ||
| 130 | 057868 |
3/4IN UNF SLOTTED NUT
|
1 | alternatives | CHF 31.60 | |
| 131 | NKC81 |
NUT, NYLOC, 3/4" UNF
|
1 | alternatives | CHF 15.15 | |
| 132 | GHF504 |
SPLITPIN 1/8 X 2IN
|
1 | use with slotted nut | CHF 0.55 |
