BN4, BN6

CAR IDENTIFICATION AUSTIN-HEALEY

Engine Number

The Engine Number is stamped on a plate secured to the front left-hand side of the cylinder block. (100-6 and 3000 only.) The 100-4 is numbered on the right-hand side of the block.

Gearbox Number

The Gearbox Number is stamped on the right-hand side of the gearbox below the oil level dipstick (except BN1).

Car Number and Body Number

The Car Number and the Body Number are stamped on plates on the right-hand side of the firewall.

Year	Model	Starting Numbers		Finishing Numbers		Remarks
1953-55	100-4 BN1	133234	136894	228026	(unknown)	3-speed
1955-56	100-4 BN2	228047	(BN2 uses car/engine numbers)		233455	4-speed
1956-59	100-6 BN4	22598	(BN4 uses car/engine numbers)		(unknown)	4 seater
1958-59	100-6 BN6	501	60949	4650	26D-H77766	2 seater, 6-port cylinder head
1959-61	3000 BN7 MkI	101	29D-H-101	13750	29D-H-26212	2-seater, horizontal grille stats
1959-61	3000 BT7 MkI	101	29D-H-101	13750	29D-H-26212	4-seater horizontal grille slats
1961-62	3000 BN7 MkII	13751	29E-H-101	18888	29E-H-5799	2-seater, vertical grille slats, 3 x 1 1/2"carburettors
1961-62	3000 BT7 MkII	13751	29E-H-101	19853	29E-E5799	4-seater, vertical grille slats, 3 x 1 1/2" carburettors
1962-63	3000 BJ7	17551	29F-101 29FF-101	25314	29F-6188	roll-up windows, 2 x 1 3/4" carburettors
1963-68	3000 BJ8	25315	29F-101 29KF-101 29KFA-224	43026	29FF-164	roll-up windows, 2 x 2" carburettors, wood veneered dash

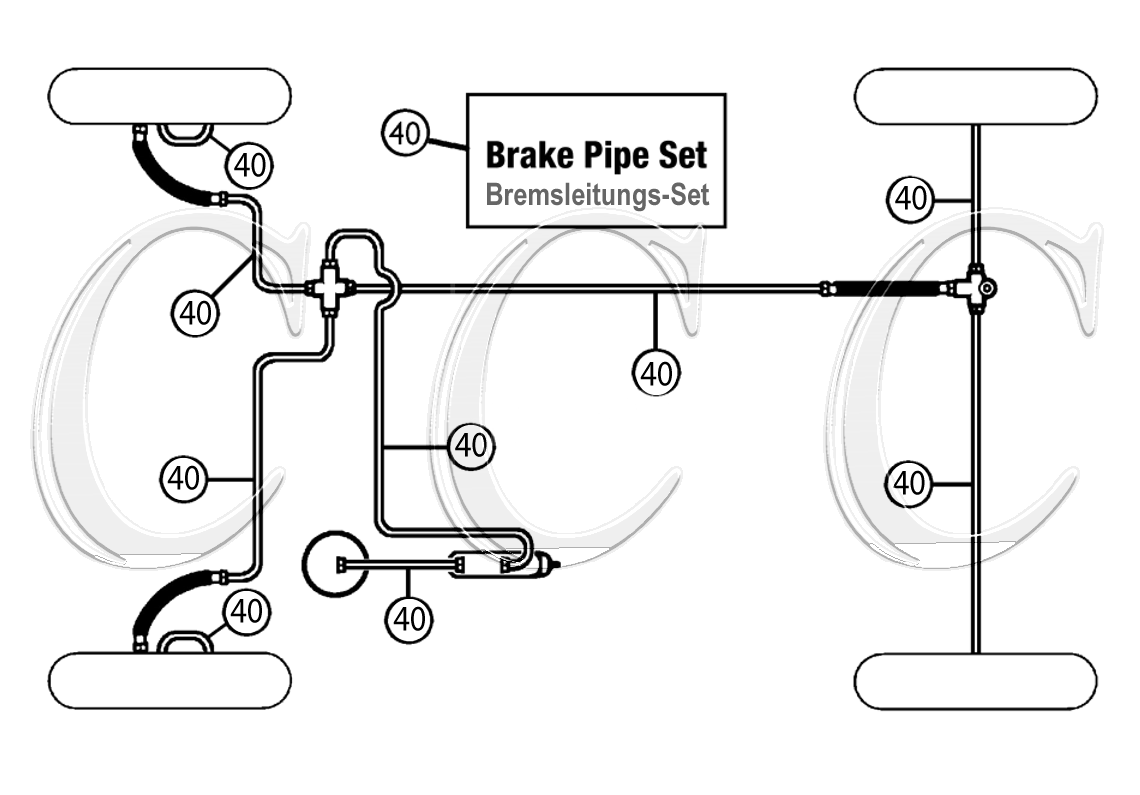

Ill.no.	Partno.	Part	Quantity required	Info	Price
40	585-417	BRAKE PIPE SET, COPPER, RHD	1	BN4, BN6 RHD	CHF 205.80
40	GAC5079	BRAKE PIPE SET BN4-BN6 LHD	1	BN4, BN6 LHD	CHF 203.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
41	585-465	PIPE, MASTER CYLINDER TO 5-WAY CONNECTOR	1	BN4, BN6 LHD	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
42	585-470	PIPE BRAKE, 5 WAY TO RH FRONT HOSE	1	BN4, BN6	CHF 26.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
43	585-475	PIPE, 5-WAY TO LH FRONT HOSE	1	BN4, BN6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
44	021-578	BRAKE PIPE 14" LONG, FRONT DRUM BRAKES, WIRE WHEELS	2	BN4, BN6 Wire wheels	CHF 39.85
44	021-572	BRAKE PIPE 10" LONG, FRONT DRUM BRAKES, DISC WHEELS	2	BN4, BN6 Disc wheels	CHF 31.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
45	585-480	PIPE, 5-WAY CONNECTOR TO REAR HOSE	1	BN4, BN6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
46	585-485	PIPE, 3-WAY TO RH REAR BRAKE	1	BN4, BN6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
47	585-490	PIPE, 3-WAY TO LH REAR BRAKE	1	BN4, BN6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
48	585-575	BRAKE, RESERVOIR TO MASTER CYLINDER, LHD	1	BN4 from C.E.48863, BN6 - Tank to master cylinder pipes are not in brake pipe sets.	CHF 49.40
48	585-455	PIPE BRAKE RESERVOIR TO MASTER CYLINDER, RHD	1	BN4 from C.E.48863, BN6 - Tank to master cylinder pipes are not in brake pipe sets.	CHF 45.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
40	585-417	BRAKE PIPE SET, COPPER, RHD	1	BN4, BN6 RHD	CHF 205.80
40	GAC5079	BRAKE PIPE SET BN4-BN6 LHD	1	BN4, BN6 LHD	CHF 203.95

41		PIPE, master cylinder to 5-way connector	1	BN4, BN6 RHD	NA
41	585-465	PIPE, MASTER CYLINDER TO 5-WAY CONNECTOR	1	BN4, BN6 LHD	availability request (add quantity to basket, offer follows)
42	585-470	PIPE BRAKE, 5 WAY TO RH FRONT HOSE	1	BN4, BN6	CHF 26.20
43	585-475	PIPE, 5-WAY TO LH FRONT HOSE	1	BN4, BN6	availability request (add quantity to basket, offer follows)
44	021-578	BRAKE PIPE 14" LONG, FRONT DRUM BRAKES, WIRE WHEELS	2	BN4, BN6 Wire wheels	CHF 39.85
44	021-572	BRAKE PIPE 10" LONG, FRONT DRUM BRAKES, DISC WHEELS	2	BN4, BN6 Disc wheels	CHF 31.50
45	585-480	PIPE, 5-WAY CONNECTOR TO REAR HOSE	1	BN4, BN6	availability request (add quantity to basket, offer follows)
46	585-485	PIPE, 3-WAY TO RH REAR BRAKE	1	BN4, BN6	availability request (add quantity to basket, offer follows)
47	585-490	PIPE, 3-WAY TO LH REAR BRAKE	1	BN4, BN6	availability request (add quantity to basket, offer follows)
48	585-575	BRAKE, RESERVOIR TO MASTER CYLINDER, LHD	1	BN4 from C.E.48863, BN6 - Tank to master cylinder pipes are not in brake pipe sets.	CHF 49.40
48	585-455	PIPE BRAKE RESERVOIR TO MASTER CYLINDER, RHD	1	BN4 from C.E.48863, BN6 - Tank to master cylinder pipes are not in brake pipe sets.	CHF 45.45
