BN7, BT7, BJ7 (NON-SERVO)

CAR IDENTIFICATION AUSTIN-HEALEY

Engine Number

The Engine Number is stamped on a plate secured to the front left-hand side of the cylinder block. (100-6 and 3000 only.) The 100-4 is numbered on the right-hand side of the block.

Gearbox Number

The Gearbox Number is stamped on the right-hand side of the gearbox below the oil level dipstick (except BN1).

Car Number and Body Number

The Car Number and the Body Number are stamped on plates on the right-hand side of the firewall.

Year	Model	Starting Numbers		Finishing Numbers		Remarks
1953-55	100-4 BN1	133234	136894	228026	(unknown)	3-speed
1955-56	100-4 BN2	228047	(BN2 uses car/engine numbers)		233455	4-speed
1956-59	100-6 BN4	22598	(BN4 uses car/engine numbers)		(unknown)	4 seater
1958-59	100-6 BN6	501	60949	4650	26D-H77766	2 seater, 6-port cylinder head
1959-61	3000 BN7 MkI	101	29D-H-101	13750	29D-H-26212	2-seater, horizontal grille stats
1959-61	3000 BT7 MkI	101	29D-H-101	13750	29D-H-26212	4-seater horizontal grille slats
1961-62	3000 BN7 MkII	13751	29E-H-101	18888	29E-H-5799	2-seater, vertical grille slats, 3 x 1 1/2"carburettors
1961-62	3000 BT7 MkII	13751	29E-H-101	19853	29E-E5799	4-seater, vertical grille slats, 3 x 1 1/2" carburettors
1962-63	3000 BJ7	17551	29F-101 29FF-101	25314	29F-6188	roll-up windows, 2 x 1 3/4" carburettors
1963-68	3000 BJ8	25315	29F-101 29KF-101 29KFA-224	43026	29FF-164	roll-up windows, 2 x 2" carburettors, wood veneered dash

Ill.no.	Partno.	Part	Quantity required	Info	Price

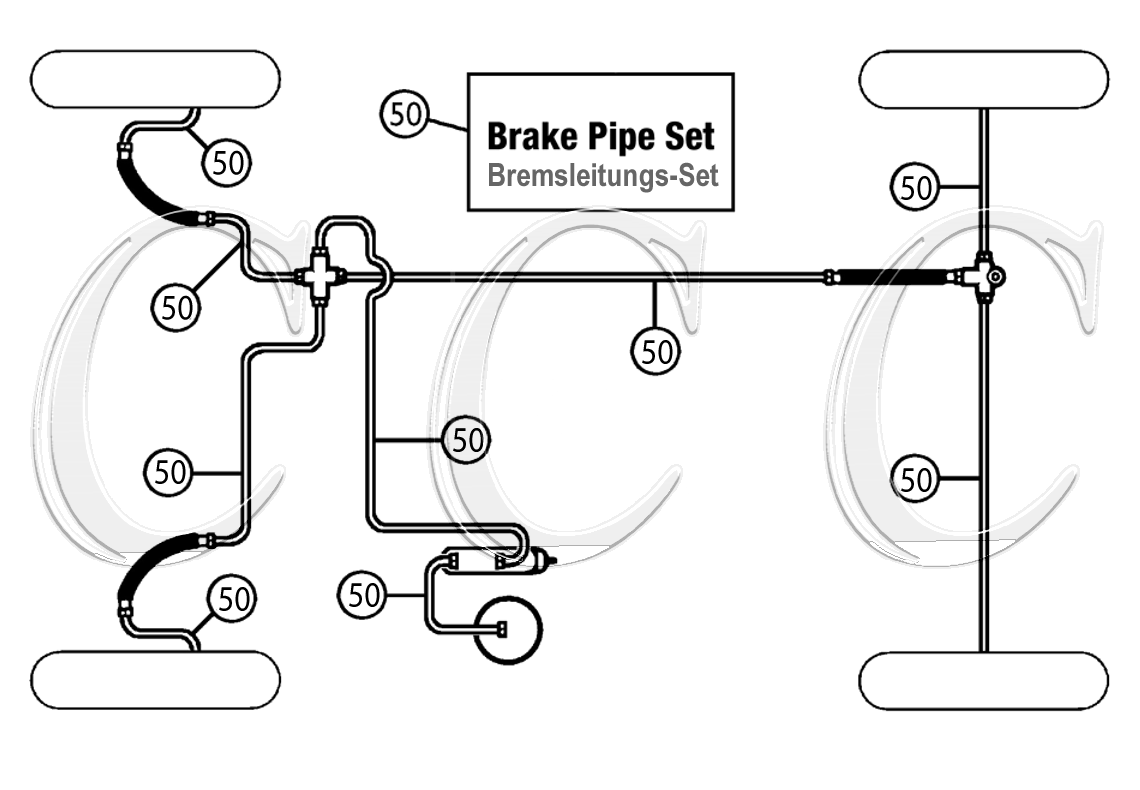

50	585-427	BRAKE PIPE SET, COPPER, RHD, WITHOUT SERVO	1	BN7, BT7, BJ7 (non-servo) RHD	CHF 219.85
50	GL5042	BRAKE PIPE SET AH LHD	1	BN7, BT7, BJ7 (non-servo) LHD	CHF 182.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
51	585-465	PIPE, MASTER CYLINDER TO 5-WAY CONNECTOR	1	BN7, BT7, BJ7 (non-servo) LHD	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
52	585-470	PIPE BRAKE, 5 WAY TO RH FRONT HOSE	1	BN7, BT7, BJ7 (non-servo)	CHF 25.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
53	585-475	PIPE, 5-WAY TO LH FRONT HOSE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
54	585-415	PIPE, RH FRONT HOSE TO CALIPER	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
55	585-450	PIPE, LH FRONT HOSE TO CALIPER	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
56	585-480	PIPE, 5-WAY CONNECTOR TO REAR HOSE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
57	585-485	PIPE, 3-WAY TO RH REAR BRAKE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
58	585-490	PIPE, 3-WAY TO LH REAR BRAKE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
59	585-575	BRAKE, RESERVOIR TO MASTER CYLINDER, LHD	1	BN7, BT7, BJ7 (non-servo) LHD - Tank to master cylinder pipes are not in brake pipe sets.	CHF 49.40
59	585-455	PIPE BRAKE RESERVOIR TO MASTER CYLINDER, RHD	1	BN7, BT7, BJ7 (non-servo) RHD - Tank to master cylinder pipes are not in brake pipe sets.	CHF 45.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
50	585-427	BRAKE PIPE SET, COPPER, RHD, WITHOUT SERVO	1	BN7, BT7, BJ7 (non-servo) RHD	CHF 219.85
50	GL5042	BRAKE PIPE SET AH LHD	1	BN7, BT7, BJ7 (non-servo) LHD	CHF 182.90

51		PIPE, master cylinder to 5-way connector	1	BN7, BT7, BJ7 (non-servo) RHD	NA
51	585-465	PIPE, MASTER CYLINDER TO 5-WAY CONNECTOR	1	BN7, BT7, BJ7 (non-servo) LHD	availability request (add quantity to basket, offer follows)
52	585-470	PIPE BRAKE, 5 WAY TO RH FRONT HOSE	1	BN7, BT7, BJ7 (non-servo)	CHF 25.05
53	585-475	PIPE, 5-WAY TO LH FRONT HOSE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
54	585-415	PIPE, RH FRONT HOSE TO CALIPER	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
55	585-450	PIPE, LH FRONT HOSE TO CALIPER	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
56	585-480	PIPE, 5-WAY CONNECTOR TO REAR HOSE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
57	585-485	PIPE, 3-WAY TO RH REAR BRAKE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
58	585-490	PIPE, 3-WAY TO LH REAR BRAKE	1	BN7, BT7, BJ7 (non-servo)	availability request (add quantity to basket, offer follows)
59	585-575	BRAKE, RESERVOIR TO MASTER CYLINDER, LHD	1	BN7, BT7, BJ7 (non-servo) LHD - Tank to master cylinder pipes are not in brake pipe sets.	CHF 49.40
59	585-455	PIPE BRAKE RESERVOIR TO MASTER CYLINDER, RHD	1	BN7, BT7, BJ7 (non-servo) RHD - Tank to master cylinder pipes are not in brake pipe sets.	CHF 45.45
