EXTERIOR LIGHTING

CAR IDENTIFICATION JENSEN INTERCEPTOR

When ordering parts, it is essential that your car is identified exactly, by model year and serial number. Since many part changes were made during model years, the car number, engine number and body number provide the only positive identification. Quite often a car's title will not show the correct model year. Before ordering parts, please use the space provided to copy the applicable numbers from your car. Use of these numbers is the best way to insure that you order and receive the correct parts. Wherever possible, we have listed part applications by car number. In some cases, we had to use the engine numbers or body numbers.

Chassis Prefixes are as follows:

Chassis Prefix	Drive	Engine	Model
128	RH	383 cu. in G Series	Int. III
		440 cu. in H Series
129	LH (Europe)	383 cu. in G Series	Int. III
		440 cu. in H Series
130	RH	383 cu. in E. Series	FF III (for engine & transmission breakdown refer Mk II)
131	RH	440 cu. in G Series	SP
		440 cu. in H Series
132	LH	440 cu. in G Series	SP
		440 cu. in H Series
133	LH (USA)	383 cu. in G Series	Int. III
		440 cu. in H Series
134	LH (USA)	440 cu. in H Series	SP
136	RH	440 cu. in J Series	Int. III
137	LH (Europe)	440 cu. in J Series	Int. III
138	RH	440 cu. in H Series	SP
140	LH (USA)	440 cu. in J Series	Int. III

Four Digit Prefixes - 1974 onwards

1. digit describes model type	2 = Interceptor
2. digit describes body style	2 = Saloon 3 = Convertible
3. digit desribes drive	1 = LHD USA 2 = LHD Europe 3 = LHD Europe 4 = RHD
4. digit describes market area	0 = USA, Austria, Switzerland, UK 1 = Germany, Australia 2 = France, Japan 3 = Belgium, Holland, New Zealand 4 = Hong Kong
4. digit prefixes do not include a model year

In Engine and Transmission Sections the columns are headed by engine series. Although these apply loosely to the year of vehicle manufacture, this cannot be relied upon and reference shoult be made to the identification pad on the cylinder block adjacent to the distributor.
H Series	1972
J Series	1973
Series 4	1974

The fitting of parts or accessories not approved by the manufacturer will invalidate the warranty.

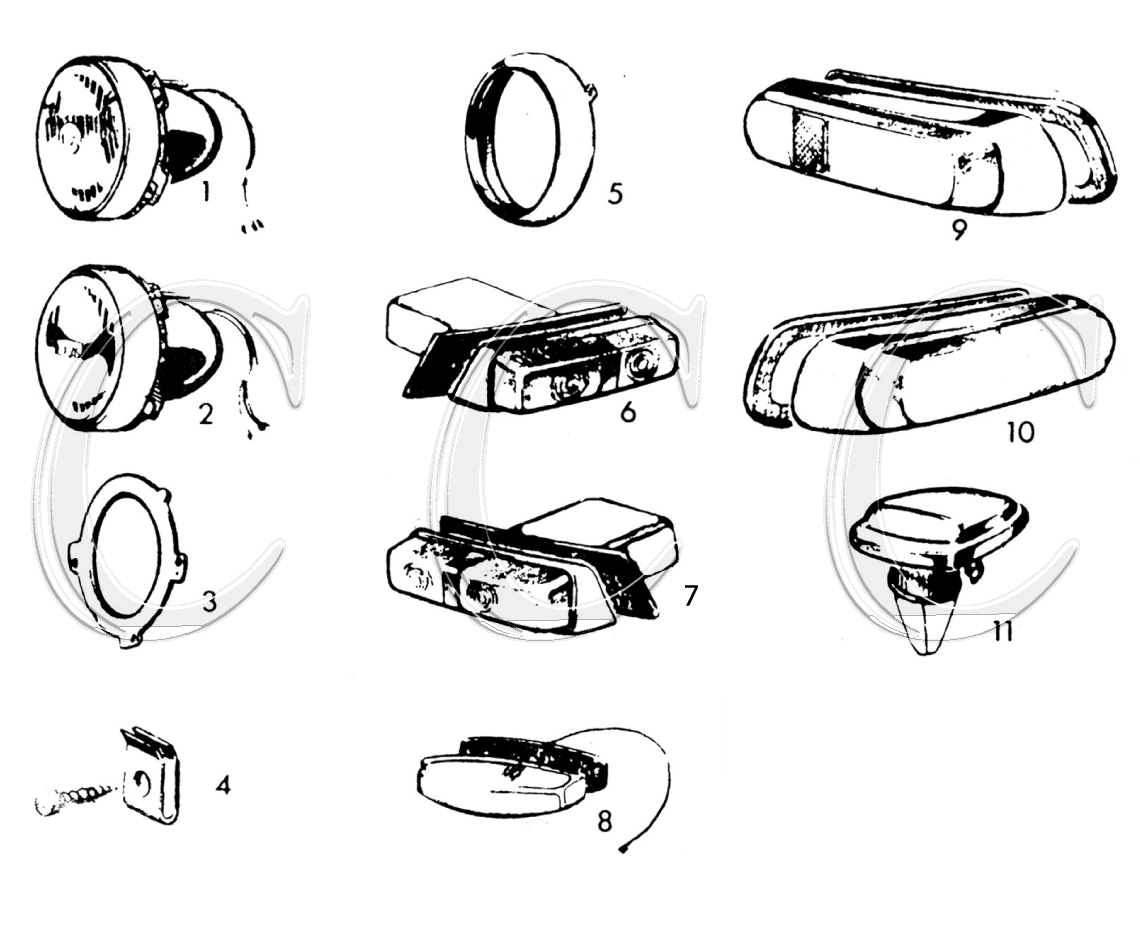

Ill.no.	Partno.	Part	Quantity required	Price
1	GLU105UR	LIGHT UNIT 5 3/4", H1 HALOGEN, INNER, MAIN BEAM, LHD	2	CHF 54.90
1	CT5935	HEADLAMP BOWL ASSY 5,75", PLASTIC	4	CHF 99.65
1	GLB472	BULB 12V 60/55W H4	2	CHF 6.85
1	520403A	ADJUSTER SET, 5.75" HEADLAMP	2	CHF 21.95
1	BAU2110	CABLE/CONNECTOR TO HEADLAMP WITHOUT PILOT	2	CHF 18.50

Ill.no.	Partno.	Part	Quantity required	Price
2	GLU526UR	LIGHT UNIT 5.75", H4 HALOGEN, OUTER (CONVEX GLASS), DIP BEAM, LHD	2	CHF 81.75
2	CT5935	HEADLAMP BOWL ASSY 5,75", PLASTIC	4	CHF 99.65
2	GLB448	BULB 12V SINGLE H1	2	CHF 6.25
2	520403A	ADJUSTER SET, 5.75" HEADLAMP	2	CHF 21.95
2	BAU2110	CABLE/CONNECTOR TO HEADLAMP WITHOUT PILOT	2	CHF 18.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
3	511602	RUBBER GASKET HEADLAMP 5.75", L54520217	4		CHF 6.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
5	71475	RIM HEADLAMP CHROME	4	Genuine new old stock part. Chrome may show signs of pitting due to age.	CHF 68.01
5	CT5517	RIM RETAINING HEADLAMP, FOR PLASTIC BOWL, WITH FIXINGS	4		CHF 67.65
5	CT5517#	RIM RETAINING HEADLAMP, FOR ORIG. STEEL BOWL	4		CHF 30.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
7	CT2590	ALTISSIMO FRONT INDICATOR / SIDE LIGHT, LH	1		CHF 241.41

Ill.no.	Partno.	Part	Quantity required	Info	Price
8	92613	SIDE REPEATER CARELLO	1		CHF 43.27

Ill.no.	Partno.	Part	Quantity required	Info	Price
9	CT2591	REAR STOP/TAIL LAMP RH	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
10	CT2592	REAR STOP/TAIL LAMP LH	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
1	GLU105UR	LIGHT UNIT 5 3/4", H1 HALOGEN, INNER, MAIN BEAM, LHD	2		CHF 54.90
1	CT5935	HEADLAMP BOWL ASSY 5,75", PLASTIC	4		CHF 99.65
1	GLB472	BULB 12V 60/55W H4	2		CHF 6.85
1	520403A	ADJUSTER SET, 5.75" HEADLAMP	2		CHF 21.95
1	BAU2110	CABLE/CONNECTOR TO HEADLAMP WITHOUT PILOT	2		CHF 18.50
2	GLU526UR	LIGHT UNIT 5.75", H4 HALOGEN, OUTER (CONVEX GLASS), DIP BEAM, LHD	2		CHF 81.75
2	CT5935	HEADLAMP BOWL ASSY 5,75", PLASTIC	4		CHF 99.65
2	GLB448	BULB 12V SINGLE H1	2		CHF 6.25
2	520403A	ADJUSTER SET, 5.75" HEADLAMP	2		CHF 21.95
2	BAU2110	CABLE/CONNECTOR TO HEADLAMP WITHOUT PILOT	2		CHF 18.50
3	511602	RUBBER GASKET HEADLAMP 5.75", L54520217	4		CHF 6.75
5	71475	RIM HEADLAMP CHROME	4	Genuine new old stock part. Chrome may show signs of pitting due to age.	CHF 68.01
5	CT5517	RIM RETAINING HEADLAMP, FOR PLASTIC BOWL, WITH FIXINGS	4		CHF 67.65
5	CT5517#	RIM RETAINING HEADLAMP, FOR ORIG. STEEL BOWL	4		CHF 30.55
7	CT2590	ALTISSIMO FRONT INDICATOR / SIDE LIGHT, LH	1		CHF 241.41
8	92613	SIDE REPEATER CARELLO	1		CHF 43.27
9	CT2591	REAR STOP/TAIL LAMP RH	1		availability request (add quantity to basket, offer follows)
10	CT2592	REAR STOP/TAIL LAMP LH	1		availability request (add quantity to basket, offer follows)
