INLET & EXHAUST MANIFOLDS

CAR IDENTIFICATION TR5 - TR6

Before ordering any parts for your TR sports car, it is essential that you have full details of the chassis number, engine number, body number, rear axle and gearbox numbers.

Number Locations

Commission/Chassis Number	The commission number on TR5-250 and early TR6 models were mounted on plates affixed to the top of the inner lefthand front wing. The plate included the commission number which could have a suffix 'L' or 'U' (1971 on) for lefthand drive models, and 'O' for overdrive. Paint & trim colour codes were also shown.
	Later TR6 models had the commission plate attached to the lefthand 'B' post, below the door shut plate.
Body Number	Two plates attached to the bulkhead were body numbers. One was fitted by the manufacturers of the body shell, the other by Triumph. These numbers are not required when ordering replacement parts.
Engine Number	The engine number was stamped onto a lip at the rear of the lefthand side of all engine blocks, just visible below the spark plug. The engine number is essential when ordering engine parts.
Gearbox Number	The gearbox number is stamped onto the casing just behind the clutch lever cross- haft box. On later US models the number was stamped above the starter motor bulge on the righthand side of the gearbox casing. Use this number when ordering gearbox parts.
Rear Axle Number	The rear axle number is located at the base of the axle housing, when viewed from beneath the car. Use this number when ordering axle parts.

TR5 Pi Models
1967	CP1	Prototype
	CP2	First production car, (built 29th August 1967)
	CP585	Last production car that year
1968	CP586	First production car, (built 1st January 1968)
	CP3101	Last production car, (built 19th September 1968)

TR250 Carburettor Models
1967	CD1-L	First production car, (built on 11th July 1967)
	CD2684 L	Last production car that year
1968	CD2685 L	First production car
	CD8594 L	Last production car, (built 19th September 1968)

TR6 Pi Models
1968	1969 model year
	CP25156	First production car, (built 28th November 1968)
	CP25158	Last production car that year
	CP25001	First car was probably a prototype
	CKD	CP25002 To CP25145 were CKD
1969	1969 model year
	CP25159	First production car, (built 2nd January 1969)
	CP26998	Last production car, (built 10th September 1968)
	1970 model year
	CP50001	First production car, (built 1st September 1969)
	CP50464	Last production car that year
	CKD	CP50002 To CP50436 believed to be CKD
1970	1970 model year
	CP50465	First production car, (built 1st January 1970)
	CP52785	Last production car that year
1971	1971 model year
	CP52786	First production car, (built 1st January 1971)
	CP54572	Last production car, (built 7th September 1971)
	CKD	CP54573 To CP54584 were CKD cars
	1972 model year
	CP75001	First production car, (built 27th September 1971)
	CP7544	Last production car that year
1972	1972 model year
	CP75455	First production car, (built 3rd January 1972)
	CP77718	Last production car, (built 21st September 1972)
	1973 model year
	CR169	First production car, (built 15th November 1972)
	CR664	Last production car that year
	CKD	CR1 to CR168 were CKD cars
1973	1973 model year
	CR665	First production car, (built on 2nd January 1973)
	CR2911	Last production car, (built 17th October 1973)
	1974 model year
	CR5049	First production car, (built 14th September 1973)
	CR5612	Last production car that year
	CKD	CR5001 To CR5048 were CKD cars
1974	1974 model year
	CR5613	First production car, (built 1st January 1974)
	CR6630	Last production car that year
1975	1974 model year
	CR6631	First production car, (built 1st January 1975)
	CR6701	Last production car, (built 7th February 1975)

TR6 Carburettor Models
1968	1969 model year
	CC25003 L	First production car, (built 19th September 1968)
	CC27383 L	Last production car that year
	CC25001 & CC25002	Not yet found in factory build records
1969	1969 model year
	CC27384 L	First production car, (built 2nd January 1969)
	CC32142 L	Last production car, (built 19th December 1969)
	1970 model year
	CC50001 L	First production car, (built 22nd November 1969)
	CC51032 L	Last production car that year
1970	1970 model year
	CC51033 L	First production car, (built 1st January 1970)
	CC60902 L	Last production car that year
1971	1971 model year
	CC60903 L	First production car, (built 1st January 1971)
	CC67893 L	Last production car, (built 20th August 1971)
	1972 model year
	CC75001 L	First production car, (built 20th August 1971)
	CC7881	Last production car that year
1972	1972 model year
	CC78813 U	First production car, (built 3rd January 1972)
	CC85737 U	Last production car, (built 5th October 1972)
	1973 model year
	CF1 U	First production car, (built 11th September 1972)
	CF 4028 U	Last production car that year
1973	1973 model year
	CF4029 U	First production car, (built 2nd January 1973)
	CF17002 U	Last production car that year
1974	1974 model year
	CF17002 U	First production car, (built 2nd January 1974)
	CF25777 U	Last production car, (built 18th September 1974)
	1975 model year
	CF27001 U	First production car, (built 22nd August 1974)
	CF29580 U	Last production car that year
1975	1975 model year
	CF29581 U	First production car, (built 2nd January 1975)
	CF39991 U	Last production car, (built 23rd August 1975)
	1976 model year
	CF50001 U	First production car, (built 29th August 1975)
	CF52314 U	Last production car that year
1976	1976 model year
	CF52315 U	First production car, (built 5th January 1976)
	CF58328 U	Last production TR6, (built 15th July 1976)

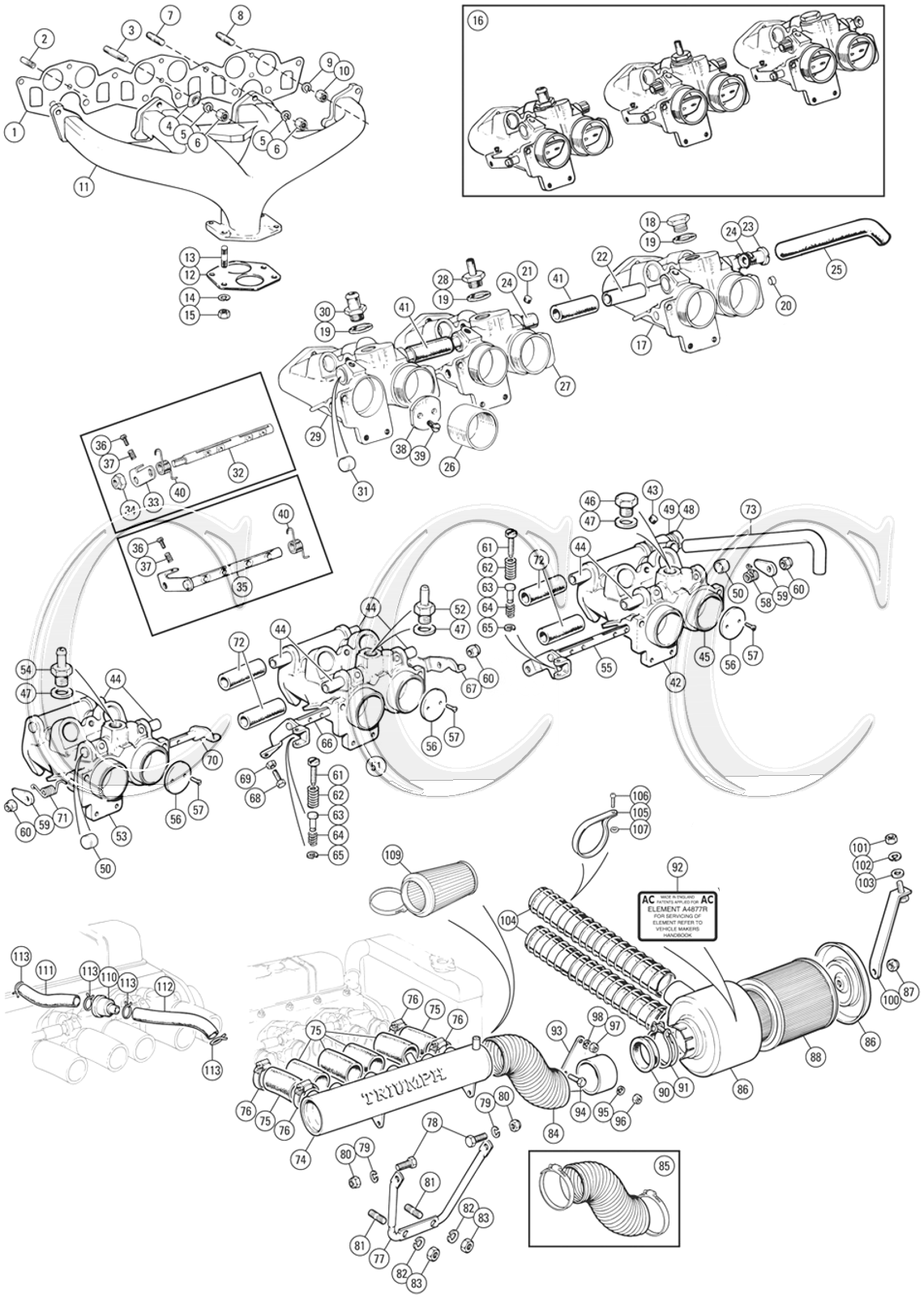

Ill.no.	Partno.	Part	Quantity required	Info	Price
1	213641	GASKET MANIFOLD	1	suitable for all carb models to chassis CC75000 incl. TR250	CHF 17.70
1	AJM682	GASKET MANIFOLD	1	suitable for all injection models and carb models from chassis CC75001	CHF 12.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
2	RPS2012	PIN-ROLL 5/16 X 3/4	3		CHF 3.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
3	TE605105	STUD, 5/16" UNF X 1.1/4"	3		CHF 4.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
4	058258	CLAMP MANIFOLD SMALL	6		CHF 11.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
5	GHF333	WASHER SPRING 3/8	10		CHF 0.20
5	WP20X	WASHER, PLAIN, 3/8" ID X 5/8" OD	10	for brass nut	CHF 0.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
5	GHF333	WASHER SPRING 3/8	10		CHF 0.20
5	WP20X	WASHER, PLAIN, 3/8" ID X 5/8" OD	10	for brass nut	CHF 0.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
6	100498	NUT EXHAUST MANIFOLD, STEEL	10		CHF 4.60
6	GHF262	NUT 3/8 UNF BRASS	10	alternative	CHF 1.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
6	100498	NUT EXHAUST MANIFOLD, STEEL	10		CHF 4.60
6	GHF262	NUT 3/8 UNF BRASS	10	alternative	CHF 1.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
7	105124	STUD EXHAUST MANIFOLD, 3/8 UNF - 3/8 UNF X 1 3/8"	4		CHF 4.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
8	105125	STUD EXHAUST MANIFOLD LONG, 3/8 UNF	6		CHF 4.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
9	GHF332	WASHER SPRING 5/16	3		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
10	100498	NUT EXHAUST MANIFOLD, STEEL	3		CHF 4.60
10	GHF262	NUT 3/8 UNF BRASS	3	alternative	CHF 1.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
11	308292	EXHAUST M/FOLD-PI- NCA	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
12	GUG4811MG	GASKET, MANIFOLD TO FRONT PIPE	1		CHF 3.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
13	115696	STUD, MANIFOLD TO FRONT PIPE	4		CHF 9.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
14	GHF333	WASHER SPRING 3/8	4		CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
15	108951	NUT, MANIFOLD, BRASS 3/8 UNC	4		CHF 4.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
16	150066K	SET/3 TR5 EXCH INLET MANIFOLD	1	recon/exchange TR5	availability request (add quantity to basket, offer follows)
16	152807K	INLET MANIFOLD SET/3 TR6CP EXCH WAS MEP	1	recon/exchange TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
17	150066	MANIFOLD	1	TR5	availability request (add quantity to basket, offer follows)
17	152807	INLET MANIFOLD PI TR6 NCA	1	TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
18	ADP210	PLUG THREADED MANIFOLD	1		CHF 15.15

Ill.no.	Partno.	Part	Quantity required	Info	Price
19	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
19	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
19	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
20	148986	PLUG-SPINDLE BORE	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
21	PU702	PLUG BLANKING	6	TR5	availability request (add quantity to basket, offer follows)
21	PU852	PLUG	6	TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
22	148899	TUBE AIR BALANCE	4		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
23	508782	SCREW METERING	1	late TR5	availability request (add quantity to basket, offer follows)
23	152685	SCREW AIR VALVE ADJUSTER TR6	1	TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
24	152691	SPRING METERING SCREW	1	late TR5	availability request (add quantity to basket, offer follows)
24	152684	SPRING PI AIR VALVE ADJ TR6 (NO LONGER AVAILABLE)	1	TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
24	152691	SPRING METERING SCREW	1	late TR5	availability request (add quantity to basket, offer follows)
24	152684	SPRING PI AIR VALVE ADJ TR6 (NO LONGER AVAILABLE)	1	TR6	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
25	152891	HOSE LATE TR5	1	late TR5	availability request (add quantity to basket, offer follows)
25	152855	USE 152855Z	1	TR6
25	152855Z	HOSE, AIR VALVE TO AIR INLET MANIFOLD	1	TR6	CHF 31.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
26	149374	TUBE NCA	6		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
27	149651	INLET MANIFOLD PI CENTRE EARLY	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
28	149764	SERVO MU ADAPTOR #	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
29	149659	MANIFOLD	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
30	149487	USE 21K8342	1
30	21K8342	ADAPTOR	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
31	144537	CORE PLUG INLET MANIFOLD	2	2 req. for TR5 non air bleed	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
32	152185	THROTTLE SPINDLE	3	TR5	CHF 120.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
34	GHF221	NUT 1/4 UNF NYLOC	3	TR5	CHF 0.30

Ill.no.	Partno.	Part	Quantity required	Info	Price
34	GHF221	NUT 1/4 UNF NYLOC	3	TR5	CHF 0.30

Ill.no.	Partno.	Part	Quantity required	Info	Price
35	152185	THROTTLE SPINDLE	3	TR6	CHF 120.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
36	149805	SCREW THROTTLE SPINDLE	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
36	149805	SCREW THROTTLE SPINDLE	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
37	149552	SPRING THROTTLE STOP SCREW	3		CHF 5.80

Ill.no.	Partno.	Part	Quantity required	Info	Price
37	149552	SPRING THROTTLE STOP SCREW	3		CHF 5.80

Ill.no.	Partno.	Part	Quantity required	Info	Price
38	148989	USE 160109	6	use new spindles
38	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
39	148988	USE C28932	12
39	C28932	SCREW DISC TO SPINDLE, 7MM	12		CHF 5.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
40	148987	RETURN SPRING NCA	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
40	148987	RETURN SPRING NCA	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
41	148899	TUBE AIR BALANCE	2		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
41	148899	TUBE AIR BALANCE	2		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
42	160300	MANIFOLD	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
43	PU852	PLUG	6		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
44	148899	TUBE AIR BALANCE	8		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
44	148899	TUBE AIR BALANCE	8		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
44	148899	TUBE AIR BALANCE	8		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
44	148899	TUBE AIR BALANCE	8		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
45	149374	TUBE NCA	6		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
46	ADP210	PLUG THREADED MANIFOLD	1		CHF 15.15

Ill.no.	Partno.	Part	Quantity required	Info	Price
47	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
47	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
47	AAA836	FIBRE WASHER	3		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
48	152685	SCREW AIR VALVE ADJUSTER TR6	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
49	152684	SPRING PI AIR VALVE ADJ TR6 (NO LONGER AVAILABLE)	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
50	144537	CORE PLUG INLET MANIFOLD	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
50	144537	CORE PLUG INLET MANIFOLD	3		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
51	160302	CENTRE INLET M/FOLD NCA	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
52	149764	SERVO MU ADAPTOR #	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
53	160303	INLET MANIFOLD PI	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
54	149487	USE 21K8342	1
54	21K8342	ADAPTOR	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
55	160247	SPINDLE CR FRONT MANIFOLD	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
56	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
56	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
56	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
57	AUC1358	SCREW BUTTERFLY	12		CHF 2.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
57	AUC1358	SCREW BUTTERFLY	12		CHF 2.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
57	AUC1358	SCREW BUTTERFLY	12		CHF 2.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
58	UKC663	SPRING-RETURN	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
59	160251	LEVER	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
59	160251	LEVER	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
60	GHF271	NUT 1/4 UNF NYLOC TN	3		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
60	GHF271	NUT 1/4 UNF NYLOC TN	3		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
60	GHF271	NUT 1/4 UNF NYLOC TN	3		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
61	UKC550	SCREW	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
61	UKC550	SCREW	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
62	160229	THROTTLE SPRING LATE PI SCREW	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
62	160229	THROTTLE SPRING LATE PI SCREW	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
63	160259	PIN	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
63	160259	PIN	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
64	160230	RETURN SPRING-CR THROTTLE LINKS	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
64	160230	RETURN SPRING-CR THROTTLE LINKS	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
65	160301	CIRCLIP	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
65	160301	CIRCLIP	2		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
66	160246	THROTTLE SPINDLE # 3 & 4	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
67	160250	LEVER-THROTTLE-	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
68	512288	ADJUSTING SCREW, FAST IDLE SETTING	1		CHF 9.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
69	512287	LOCK NUT, FAST IDLE SCREW	1		CHF 3.80

Ill.no.	Partno.	Part	Quantity required	Info	Price
70	160248	THROTTLE SPINDLE	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
71	UKC664	SPRING RETURN	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
72	148899	TUBE AIR BALANCE	4		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
72	148899	TUBE AIR BALANCE	4		CHF 13.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
73	160242Z	HOSE AIR VALVE TO AIR INLET, AFTERMARKET	1		CHF 35.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
74	214804	AIR MANIFOLD	1	TR5	availability request (add quantity to basket, offer follows)
74	216062	USE 216374	1	TR6 To CP50000
74	216374	TR6 PI AIR PLENUM CHAMBER	1	TR6 From CP50001	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
75	152601SP	HOSE, AIR TO INLET MANIFOLD, PLAIN	6	TR5, TR6 To CP50000 & TR6 From CP50001	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
75	152601SP	HOSE, AIR TO INLET MANIFOLD, PLAIN	6	TR5, TR6 To CP50000 & TR6 From CP50001	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
75	152601SP	HOSE, AIR TO INLET MANIFOLD, PLAIN	6	TR5, TR6 To CP50000 & TR6 From CP50001	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
76	GHC11055	HOSE CLIP, 40-55MM	1	two outermost hoses only	CHF 7.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
76	GHC11055	HOSE CLIP, 40-55MM	1	two outermost hoses only	CHF 7.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
76	GHC11055	HOSE CLIP, 40-55MM	1	two outermost hoses only	CHF 7.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
76	GHC11055	HOSE CLIP, 40-55MM	1	two outermost hoses only	CHF 7.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
77	214840	AIR MANIFOLD STAY TR56 PI	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
78	GHF117	SCREW 1/4UNF X 3/4	2		CHF 0.40

Ill.no.	Partno.	Part	Quantity required	Info	Price
79	GHF331	WASHER SPRING 1/4"	2		CHF 0.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
79	GHF331	WASHER SPRING 1/4"	2		CHF 0.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
80	GHF200	NUT 1/4 UNF	2		CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
80	GHF200	NUT 1/4 UNF	2		CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
81	105124	STUD EXHAUST MANIFOLD, 3/8 UNF - 3/8 UNF X 1 3/8"	2		CHF 4.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
81	105124	STUD EXHAUST MANIFOLD, 3/8 UNF - 3/8 UNF X 1 3/8"	2		CHF 4.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
82	GHF333	WASHER SPRING 3/8	2		CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
82	GHF333	WASHER SPRING 3/8	2		CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
83	GHF202	NUT PLAIN 3/8 UNF	2		CHF 0.15

Ill.no.	Partno.	Part	Quantity required	Info	Price
83	GHF202	NUT PLAIN 3/8 UNF	2		CHF 0.15

Ill.no.	Partno.	Part	Quantity required	Info	Price
84	149693	AIR INLET HOSE TR5/6 CUT LENGTH 17IN	1		availability request (add quantity to basket, offer follows)
84	149693X	AIR HOSE INLET TO MANIFOLD	1		CHF 25.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
85	149693K	AIRHOSE KIT-FLEX+CLIPS	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
86	308444SS	AIR CLEANER ASSEMBLY TR6 STAINLESS	1	includes lid, nut & element	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
86	308444SS	AIR CLEANER ASSEMBLY TR6 STAINLESS	1	includes lid, nut & element	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
87	517410	NUT NYLOC 5/16" UNC	1		CHF 2.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
88	GFE1048A	FILTER AIR TR5-6 PI AFTERMARKET	1	standard filter	CHF 13.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
90	517411	RUBBER PLUG	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
91	GHC11090	HOSE CLIP, 70-90MM	1		CHF 10.10


92	CRST243	DECAL AIR FILTER AC	1	no longer available

Ill.no.	Partno.	Part	Quantity required	Info	Price
93	149306	SUPPORT FOR AIR CLEANER	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
94	SH605051	SCREW 5/16" UNF X 5/8"	1		CHF 0.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
95	GHF332	WASHER SPRING 5/16	1		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
96	GHF201	NUT 5/16 UNF	1		CHF 0.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
97	GHF201	NUT 5/16 UNF	1		CHF 0.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
98	GHF332	WASHER SPRING 5/16	1		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
100	153282	STRAP ASSEMBLY, AIR CLEANER SUPPORT	1	TR6	CHF 43.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
101	GHF200	NUT 1/4 UNF	1	TR6	CHF 0.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
102	GHF331	WASHER SPRING 1/4"	1	TR6	CHF 0.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
103	WM57	WASHER, PLAIN, 1/4" ID X 3/4" OD	1	TR6	CHF 0.40

Ill.no.	Partno.	Part	Quantity required	Info	Price
104	627527	AIR INLET HOSE	2	TR6 From CP52894	CHF 29.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
105	156401	CLIP NCA	2	TR6 From CP52894	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
106	HU506	SET SCREW 3/16UNFX3/4	2	TR6 From CP52894	CHF 2.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
107	PWZ203	WASHER, PLAIN, 3/16" ID X 3/4" OD	2	TR6 From CP52894	CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
109	KNRU2710	AIR FILTER, K&N, CLAMP ON	1	alternative performance filters	CHF 112.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
110	603330A	BREATHER FLAME TRAP	1		CHF 16.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
111	149995Z	HOSE BREATHER, ROCKER COVER-FLAME	1		CHF 1.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
112	149994Z	HOSE BREATHER FLAME-PLENUM	1		CHF 7.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
113	ACA5290	CLIP BREATHER HOSE	4		CHF 5.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
113	ACA5290	CLIP BREATHER HOSE	4		CHF 5.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
113	ACA5290	CLIP BREATHER HOSE	4		CHF 5.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
1	213641	GASKET MANIFOLD	1	suitable for all carb models to chassis CC75000 incl. TR250	CHF 17.70
1	AJM682	GASKET MANIFOLD	1	suitable for all injection models and carb models from chassis CC75001	CHF 12.90
2	RPS2012	PIN-ROLL 5/16 X 3/4	3		CHF 3.60
3	TE605105	STUD, 5/16" UNF X 1.1/4"	3		CHF 4.60
4	058258	CLAMP MANIFOLD SMALL	6		CHF 11.65
5	GHF333	WASHER SPRING 3/8	10		CHF 0.20
5	WP20X	WASHER, PLAIN, 3/8" ID X 5/8" OD	10	for brass nut	CHF 0.90
6	100498	NUT EXHAUST MANIFOLD, STEEL	10		CHF 4.60
6	GHF262	NUT 3/8 UNF BRASS	10	alternative	CHF 1.75
7	105124	STUD EXHAUST MANIFOLD, 3/8 UNF - 3/8 UNF X 1 3/8"	4		CHF 4.00
8	105125	STUD EXHAUST MANIFOLD LONG, 3/8 UNF	6		CHF 4.60
9	GHF332	WASHER SPRING 5/16	3		CHF 0.25
10	100498	NUT EXHAUST MANIFOLD, STEEL	3		CHF 4.60
10	GHF262	NUT 3/8 UNF BRASS	3	alternative	CHF 1.75
11	308292	EXHAUST M/FOLD-PI- NCA	1		availability request (add quantity to basket, offer follows)
12	GUG4811MG	GASKET, MANIFOLD TO FRONT PIPE	1		CHF 3.85
13	115696	STUD, MANIFOLD TO FRONT PIPE	4		CHF 9.85
14	GHF333	WASHER SPRING 3/8	4		CHF 0.20
15	108951	NUT, MANIFOLD, BRASS 3/8 UNC	4		CHF 4.05
16	150066K	SET/3 TR5 EXCH INLET MANIFOLD	1	recon/exchange TR5	availability request (add quantity to basket, offer follows)
16	152807K	INLET MANIFOLD SET/3 TR6CP EXCH WAS MEP	1	recon/exchange TR6	availability request (add quantity to basket, offer follows)
17	150066	MANIFOLD	1	TR5	availability request (add quantity to basket, offer follows)
17	152807	INLET MANIFOLD PI TR6 NCA	1	TR6	availability request (add quantity to basket, offer follows)
18	ADP210	PLUG THREADED MANIFOLD	1		CHF 15.15
19	AAA836	FIBRE WASHER	3		CHF 1.05
20	148986	PLUG-SPINDLE BORE	3		availability request (add quantity to basket, offer follows)
21	PU702	PLUG BLANKING	6	TR5	availability request (add quantity to basket, offer follows)
21	PU852	PLUG	6	TR6	availability request (add quantity to basket, offer follows)
22	148899	TUBE AIR BALANCE	4		CHF 13.10
23	508782	SCREW METERING	1	late TR5	availability request (add quantity to basket, offer follows)
23	152685	SCREW AIR VALVE ADJUSTER TR6	1	TR6	availability request (add quantity to basket, offer follows)
24	152691	SPRING METERING SCREW	1	late TR5	availability request (add quantity to basket, offer follows)
24	152684	SPRING PI AIR VALVE ADJ TR6 (NO LONGER AVAILABLE)	1	TR6	availability request (add quantity to basket, offer follows)
25	152891	HOSE LATE TR5	1	late TR5	availability request (add quantity to basket, offer follows)
25	152855	USE 152855Z	1	TR6
25	152855Z	HOSE, AIR VALVE TO AIR INLET MANIFOLD	1	TR6	CHF 31.75
26	149374	TUBE NCA	6		availability request (add quantity to basket, offer follows)
27	149651	INLET MANIFOLD PI CENTRE EARLY	1		availability request (add quantity to basket, offer follows)
28	149764	SERVO MU ADAPTOR #	1		availability request (add quantity to basket, offer follows)
29	149659	MANIFOLD	1		availability request (add quantity to basket, offer follows)
30	149487	USE 21K8342	1
30	21K8342	ADAPTOR	1		availability request (add quantity to basket, offer follows)
31	144537	CORE PLUG INLET MANIFOLD	2	2 req. for TR5 non air bleed	availability request (add quantity to basket, offer follows)
32	152185	THROTTLE SPINDLE	3	TR5	CHF 120.00
34	GHF221	NUT 1/4 UNF NYLOC	3	TR5	CHF 0.30
35	152185	THROTTLE SPINDLE	3	TR6	CHF 120.00
36	149805	SCREW THROTTLE SPINDLE	3		availability request (add quantity to basket, offer follows)
37	149552	SPRING THROTTLE STOP SCREW	3		CHF 5.80
38	148989	USE 160109	6	use new spindles
38	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05
39	148988	USE C28932	12
39	C28932	SCREW DISC TO SPINDLE, 7MM	12		CHF 5.75
40	148987	RETURN SPRING NCA	3		availability request (add quantity to basket, offer follows)
41	148899	TUBE AIR BALANCE	2		CHF 13.10
42	160300	MANIFOLD	1		availability request (add quantity to basket, offer follows)
43	PU852	PLUG	6		availability request (add quantity to basket, offer follows)
44	148899	TUBE AIR BALANCE	8		CHF 13.10
45	149374	TUBE NCA	6		availability request (add quantity to basket, offer follows)
46	ADP210	PLUG THREADED MANIFOLD	1		CHF 15.15
47	AAA836	FIBRE WASHER	3		CHF 1.05
48	152685	SCREW AIR VALVE ADJUSTER TR6	1		availability request (add quantity to basket, offer follows)
49	152684	SPRING PI AIR VALVE ADJ TR6 (NO LONGER AVAILABLE)	1		availability request (add quantity to basket, offer follows)
50	144537	CORE PLUG INLET MANIFOLD	3		availability request (add quantity to basket, offer follows)
51	160302	CENTRE INLET M/FOLD NCA	1		availability request (add quantity to basket, offer follows)
52	149764	SERVO MU ADAPTOR #	1		availability request (add quantity to basket, offer follows)
53	160303	INLET MANIFOLD PI	1		availability request (add quantity to basket, offer follows)
54	149487	USE 21K8342	1
54	21K8342	ADAPTOR	1		availability request (add quantity to basket, offer follows)
55	160247	SPINDLE CR FRONT MANIFOLD	1		availability request (add quantity to basket, offer follows)
56	160109	THROTTLE DISC PI	6	use new spindles	CHF 59.05
57	AUC1358	SCREW BUTTERFLY	12		CHF 2.95
58	UKC663	SPRING-RETURN	1		availability request (add quantity to basket, offer follows)
59	160251	LEVER	2		availability request (add quantity to basket, offer follows)
60	GHF271	NUT 1/4 UNF NYLOC TN	3		CHF 0.25
61	UKC550	SCREW	2		availability request (add quantity to basket, offer follows)
62	160229	THROTTLE SPRING LATE PI SCREW	1		availability request (add quantity to basket, offer follows)
63	160259	PIN	2		availability request (add quantity to basket, offer follows)
64	160230	RETURN SPRING-CR THROTTLE LINKS	2		availability request (add quantity to basket, offer follows)
65	160301	CIRCLIP	2		availability request (add quantity to basket, offer follows)
66	160246	THROTTLE SPINDLE # 3 & 4	1		availability request (add quantity to basket, offer follows)
67	160250	LEVER-THROTTLE-	1		availability request (add quantity to basket, offer follows)
68	512288	ADJUSTING SCREW, FAST IDLE SETTING	1		CHF 9.20
69	512287	LOCK NUT, FAST IDLE SCREW	1		CHF 3.80
70	160248	THROTTLE SPINDLE	1		availability request (add quantity to basket, offer follows)
71	UKC664	SPRING RETURN	1		availability request (add quantity to basket, offer follows)
72	148899	TUBE AIR BALANCE	4		CHF 13.10
73	160242Z	HOSE AIR VALVE TO AIR INLET, AFTERMARKET	1		CHF 35.25
74	214804	AIR MANIFOLD	1	TR5	availability request (add quantity to basket, offer follows)
74	216062	USE 216374	1	TR6 To CP50000
74	216374	TR6 PI AIR PLENUM CHAMBER	1	TR6 From CP50001	availability request (add quantity to basket, offer follows)
75	152601SP	HOSE, AIR TO INLET MANIFOLD, PLAIN	6	TR5, TR6 To CP50000 & TR6 From CP50001	availability request (add quantity to basket, offer follows)
76	GHC11055	HOSE CLIP, 40-55MM	1	two outermost hoses only	CHF 7.90
77	214840	AIR MANIFOLD STAY TR56 PI	1		availability request (add quantity to basket, offer follows)
78	GHF117	SCREW 1/4UNF X 3/4	2		CHF 0.40
79	GHF331	WASHER SPRING 1/4"	2		CHF 0.55
80	GHF200	NUT 1/4 UNF	2		CHF 0.20
81	105124	STUD EXHAUST MANIFOLD, 3/8 UNF - 3/8 UNF X 1 3/8"	2		CHF 4.00
82	GHF333	WASHER SPRING 3/8	2		CHF 0.20
83	GHF202	NUT PLAIN 3/8 UNF	2		CHF 0.15
84	149693	AIR INLET HOSE TR5/6 CUT LENGTH 17IN	1		availability request (add quantity to basket, offer follows)
84	149693X	AIR HOSE INLET TO MANIFOLD	1		CHF 25.20
85	149693K	AIRHOSE KIT-FLEX+CLIPS	1		availability request (add quantity to basket, offer follows)
86	308444SS	AIR CLEANER ASSEMBLY TR6 STAINLESS	1	includes lid, nut & element	availability request (add quantity to basket, offer follows)
87	517410	NUT NYLOC 5/16" UNC	1		CHF 2.25
88	GFE1048A	FILTER AIR TR5-6 PI AFTERMARKET	1	standard filter	CHF 13.60
90	517411	RUBBER PLUG	1		availability request (add quantity to basket, offer follows)
91	GHC11090	HOSE CLIP, 70-90MM	1		CHF 10.10

92	CRST243	DECAL AIR FILTER AC	1	no longer available
93	149306	SUPPORT FOR AIR CLEANER	1		availability request (add quantity to basket, offer follows)
94	SH605051	SCREW 5/16" UNF X 5/8"	1		CHF 0.85
95	GHF332	WASHER SPRING 5/16	1		CHF 0.25
96	GHF201	NUT 5/16 UNF	1		CHF 0.45
97	GHF201	NUT 5/16 UNF	1		CHF 0.45
98	GHF332	WASHER SPRING 5/16	1		CHF 0.25
100	153282	STRAP ASSEMBLY, AIR CLEANER SUPPORT	1	TR6	CHF 43.45
101	GHF200	NUT 1/4 UNF	1	TR6	CHF 0.20
102	GHF331	WASHER SPRING 1/4"	1	TR6	CHF 0.55
103	WM57	WASHER, PLAIN, 1/4" ID X 3/4" OD	1	TR6	CHF 0.40
104	627527	AIR INLET HOSE	2	TR6 From CP52894	CHF 29.65
105	156401	CLIP NCA	2	TR6 From CP52894	availability request (add quantity to basket, offer follows)
106	HU506	SET SCREW 3/16UNFX3/4	2	TR6 From CP52894	CHF 2.05
107	PWZ203	WASHER, PLAIN, 3/16" ID X 3/4" OD	2	TR6 From CP52894	CHF 0.25
109	KNRU2710	AIR FILTER, K&N, CLAMP ON	1	alternative performance filters	CHF 112.20
110	603330A	BREATHER FLAME TRAP	1		CHF 16.90
111	149995Z	HOSE BREATHER, ROCKER COVER-FLAME	1		CHF 1.85
112	149994Z	HOSE BREATHER FLAME-PLENUM	1		CHF 7.65
113	ACA5290	CLIP BREATHER HOSE	4		CHF 5.50
