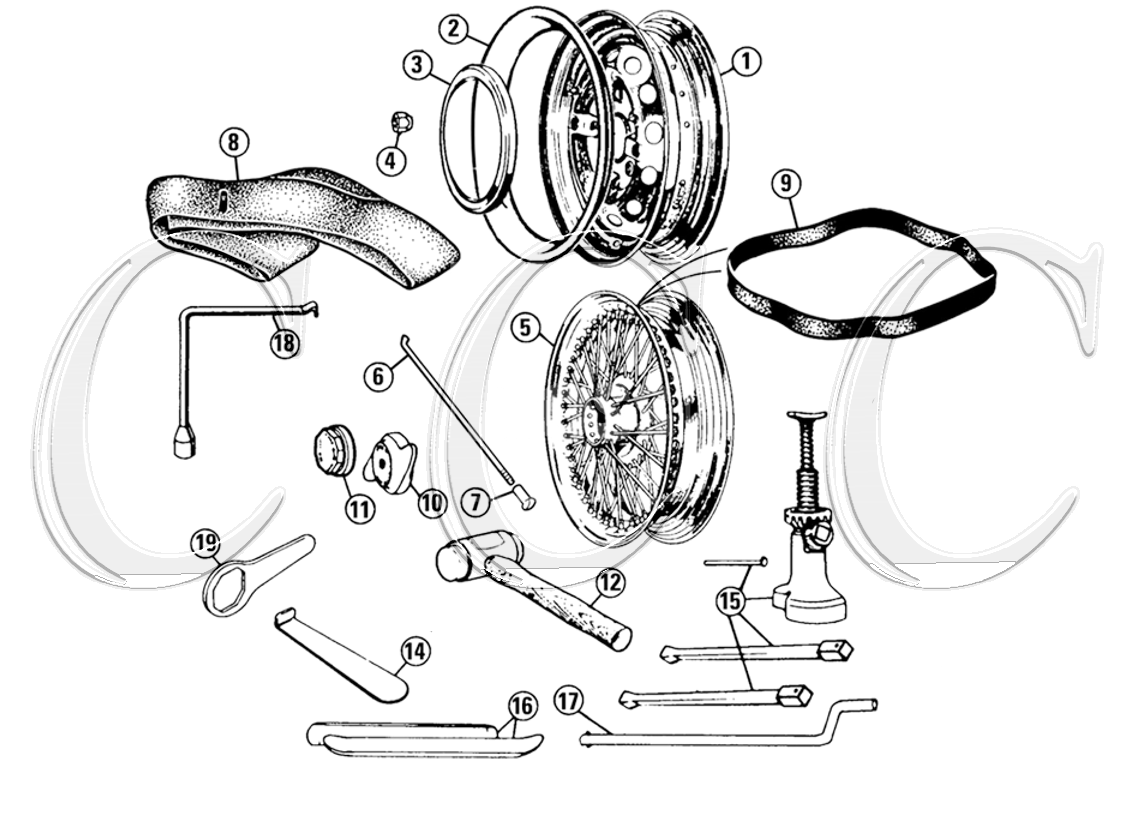

ROAD WHEELS AND TOOLS

CAR IDENTIFICATION MG A

Year	Model	Numbers manufactured
September 1955 to May 1959	MGA 1500cc	10101 to 68,850
September 1958 to June 1960	MGA Twin Cam	501 to 2611
May 1959 to April 1961	MGA 1600cc	68,851 to 100,351
April 1961 to June 1962	MGA 1600cc MkII	100,352 to 109,070

BMC 'B' Series Engine Use(1953 to 1981)

Model	cc	Prefix	BHP/RPM	Torque
M.G. MGA	1489	BP15GB,15GB	68/5200	82
M.G. MGA	1489	15GD	72/5500	85
M.G. MGA 1600	1588	16GA	80/5600	87
MGA Twin Cam	1588	BC16GB	108/6700
M.G. MGA 1600 Mk2	1622	16GC	90/5500 97

MGA Serial Numbers

Engine Number

The engine number is stamped on a plate secured to the righthand side of the cylinder block...or it is stamped on a plate secured to the rear of the engine behind the cylinder block. (Twin Cam)

Car Number

The car number is stamped on a plate secured to the top lefthand side of the dash panel

Gearbox Number

The gearbox number is stamped on the top of the gearbox casing adjacent to the dipstick

Body Number

The body number is stamped on a plate secured to the bulkhead between the righthand bonnet hinge and the fuse block.

Rear Axle Number

The rear axle No is stamped on the front of the axle tube on the LH side next to the spring seat.

Identifying the MGA

There are only five variations of the MGA. The 1500cc, 1600cc, MkII, Twin Cam and 1600cc MkII De luxe. The Coupés were a variation of the Roadster and were not differentiated by the factory numbering system as to body style. The Twin Cam, a major undertaking at the time of its introduction, was identified separately while the De luxe, the most elusive of MGA models, was not distinctly identified. There are reliable production figures for all models except the De luxe.

The three major MGA models may be readily identified by their tail-lamp and grille configurations as well as their engine displacement.

A 1500cc will have the familiar single Lucas tail lamp, the flush style grille and no shroud or boot lid emblems. Four-wheel drum brakes were fitted to this model only.

Very early 1500ccs had different style gauge faces, an example of which can be found in the factory service manual and drivers handbook illustrations. The door rails on the first few cars were entirely of wood as were the cockpit rear corners. There are few of these seen today. The 1500's did not have the starter hump on the passenger toe board or the windscreen mounted hood clamp. The turn indicators were switched through a relay.

1600cc is differentiated by the dual rear lamp with separate turn lamps, larger round parking lamps with flat lenses and a '1600cc' marker on the cowl and rear boot lid. Disc brakes on the front greatly improved stopping power. The starter position was moved with the resulting hump on the passenger toe board.

The 1600cc MkII received the closest thing to a face lift an MGA ever got. The famous flat grille was replaced with the 'pre-crushed' version. The MkI Mini rear lamps appeared horizontally below the boot lid and the vinyl covered dash and cowl and 1600cc MkII badges were added. The chrome trim and dash escutcheon from the Coupé finished off the dash. Seat belt anchors were added to the chassis. 1600cc MkII De luxe cars used the Twin Cam chassis with the push rod 1622cc engine. Check all parts carefully, as MGA's have not always enjoyed the respect they do now, and parts have been freely exchanged with little regard for originality. When re-wiring your car, be sure to order the loom that fits your body type, not engine type.

unillustrated articles

Ill.no.	Partno.	Part	Quantity required	Info	Price
NI	411EHW	WIRE WHEEL BALANCING KIT	1		CHF 142.40

Ill.no.	Partno.	Part	Quantity required	Info	Price
1	ACH8004	WHEEL, STEEL. ROUND HOLES, 15"X4"	5	To 63576	availability request (add quantity to basket, offer follows)
1	AHH8010	WHEEL, STEEL, OVAL HOLES, 15" X 4"	5	From 63577	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
2	502160Z	WHEEL TRIM, 15", CHROME, AFTERMARKET	4		CHF 120.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
3	88G290	HUB CAP, DISC WHEEL	4		CHF 56.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
4	88G276	WHEEL NUT, DISC WHEEL	16		CHF 6.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
5	WWP450	WIRE WHEEL, PAINTED, 15" X 4", 48 SPOKES	5	48 spoke wheel factory option	CHF 263.25
5	WWC450	WIRE WHEEL, CHROME, 15" X 4", 48 SPOKES	5	48 spoke wheel factory option	CHF 374.60
5	WWP452	WIRE WHEEL, PAINTED, 15" X 4.5", 60 SPOKES	5	60 spoke wheel optional upgrade	CHF 259.80
5	WWC452	WIRE WHEEL 4,5x15", CHROME, 60 SPOKES	5	60 spoke wheel optional upgrade	CHF 382.50
5	WWP459	WIRE WHEEL, PAINTED, 15" X 5", 72 SPOKES	5	72 spoke wheel optional upgrade	CHF 303.75
5	WWC459	WIRE WHEEL, CHROME, 15" X 5", 72 SPOKE	5	72 spoke wheel optional upgrade	CHF 444.35

Ill.no.	Partno.	Part	Quantity required	Info	Price
6	7H1805	SPOKE, OUTER LONG, 6.45", MILD STEEL	a/r	48 spoke painted wire wheels	CHF 13.90
6	7H1806	SPOKE, INNER/SHORT, 5.01", STANDARD	a/r	48 spoke painted wire wheels	CHF 13.90
6	7H1805CP	SPOKE, OUTER/LONG, 6.45", CHROMED STAINLESS STEEL	a/r	48 spoke chrome wire wheels	CHF 18.50
6	7H1806CP	SPOKE, INNER/SHORT, 5.01", CHROMED STAINLESS STEEL	a/r	48 spoke chrome wire wheels	CHF 18.50
6	17H8619	SPOKE, OUTER/LONG, 6.20", MILD STEEL	a/r	60 spoke painted wire wheels	CHF 13.90
6	17H8620	SPOKE, INNER/SHORT, 5.12", STANDARD	a/r	60 spoke painted wire wheels	CHF 13.90
6	17H8619CP	SPOKE, OUTER/LONG, 6.20", CHROMED STAINLESS STEEL	a/r	60 spoke chrome wire wheels	CHF 18.50
6	17H8620CP	SPOKE, INNER/SHORT, 5.12", CHROMED STAINLESS STEEL	a/r	60 spoke chrome wire wheels	CHF 18.50
6	37H3650	SPOKE OUTER/LONG 6.25", CHROMED STAINLESS STEEL	a/r	72 spoke chrome wire wheels	CHF 16.50
6	37H3649	SPOKE INNER/SHORT, 5.5", CHROMED STAINLESS STEEL	a/r	72 spoke chrome wire wheels	CHF 18.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
7	7H1709	NIPPLE CARBON STEEL	a/r	painted wire wheels	CHF 1.75
7	37H3651	NIPPLE CHROMED STAINLESS STEEL	a/r	chrome wire wheels	CHF 3.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
8	452-755	INNER TUBE 155/165X15"	a/r		CHF 46.15
8	452-765	INNER TUBE 175/185X15"	a/r		CHF 57.20

Ill.no.	Partno.	Part	Quantity required	Info	Price
9	452-750	RIM BAND 15"	a/r		CHF 16.30

Ill.no.	Partno.	Part	Quantity required	Info	Price
10	AHH7317A	KNOCK-ON 2 EAR 12TPI RH CENTER CAP WITH MG LOGO	2	with MG logo	CHF 67.45
10	AHH7318A	KNOCK-ON 2 EAR 12TPI LH CENTER CAP WITH MG-LOGO	2	with MG logo	CHF 67.45
10	AHH7317	KNOCK-ON 2 EAR 12TPI RH PLAIN CENTER CAP	2		CHF 65.85
10	AHH7318	KNOCK-ON 2 EAR 12TPI LH PLAIN CENTER CAP	2		CHF 65.85
10	AHH73173	KNOCK-ON 3 EARED, PLAIN, 12 TPI, RH CENTER CAP	2		availability request (add quantity to basket, offer follows)
10	AHH73183	WHEEL SPINNER, 3 EARED, PLAIN, 12 TPI, LH	2		CHF 104.35

Ill.no.	Partno.	Part	Quantity required	Info	Price
11	AHH7315AMWS	KNOCK ON OCTAGONE 12TPI RH MG CENTER CAP	2	with MG logo	CHF 72.50
11	AHH7316AMWS	K-ON OCT 12TPI LH MG MWS	2	with MG logo	CHF 72.50
11	AHH7315MWS	KNOCK-ON OCTAGONAL 12TPI RH PLAIN MWS	2		CHF 68.45
11	AHH7316MWS	WHEEL SPINNER, KNOCK-ON OCTAGONAL 12TPI LH PLAIN	2		CHF 68.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
12	11B5166	HAMMER, COPPER/COPPER, 1.26 KG	1	as original, 2.7 lbs.	CHF 68.05
12	C27290	MALLET COPPER/HIDE	1	2 lbs.	CHF 70.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
14	11H1051	TOOL, HUB CAP REMOVER	1		CHF 12.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
15	AHH5124K	JACK WITH HANDLE, SCREW TYPE	1		CHF 201.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
16	AJJ281K	TYRE IRON SET (2 X IRONS IN BLISTER PACK)	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
17	AHH5080	STARTING HANDLE	1	faithful repro of original	CHF 108.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
18	31G5961	WHEEL BRACE MGA 3/4 HOT= ACA9913 = NCA 30/10/14 NL	1	steel wheels only	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
19	AHH5839	SPANNER OCTAGONAL	1	wire wheels only	CHF 14.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
20			1

Ill.no.	Partno.	Part	Quantity required	Info	Price
21	523638A	TYRE PUMP - HAND	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
1	ACH8004	WHEEL, STEEL. ROUND HOLES, 15"X4"	5	To 63576	availability request (add quantity to basket, offer follows)
1	AHH8010	WHEEL, STEEL, OVAL HOLES, 15" X 4"	5	From 63577	availability request (add quantity to basket, offer follows)
2	502160Z	WHEEL TRIM, 15", CHROME, AFTERMARKET	4		CHF 120.85
3	88G290	HUB CAP, DISC WHEEL	4		CHF 56.00
4	88G276	WHEEL NUT, DISC WHEEL	16		CHF 6.45
5	WWP450	WIRE WHEEL, PAINTED, 15" X 4", 48 SPOKES	5	48 spoke wheel factory option	CHF 263.25
5	WWC450	WIRE WHEEL, CHROME, 15" X 4", 48 SPOKES	5	48 spoke wheel factory option	CHF 374.60
5	WWP452	WIRE WHEEL, PAINTED, 15" X 4.5", 60 SPOKES	5	60 spoke wheel optional upgrade	CHF 259.80
5	WWC452	WIRE WHEEL 4,5x15", CHROME, 60 SPOKES	5	60 spoke wheel optional upgrade	CHF 382.50
5	WWP459	WIRE WHEEL, PAINTED, 15" X 5", 72 SPOKES	5	72 spoke wheel optional upgrade	CHF 303.75
5	WWC459	WIRE WHEEL, CHROME, 15" X 5", 72 SPOKE	5	72 spoke wheel optional upgrade	CHF 444.35
6	7H1805	SPOKE, OUTER LONG, 6.45", MILD STEEL	a/r	48 spoke painted wire wheels	CHF 13.90
6	7H1806	SPOKE, INNER/SHORT, 5.01", STANDARD	a/r	48 spoke painted wire wheels	CHF 13.90
6	7H1805CP	SPOKE, OUTER/LONG, 6.45", CHROMED STAINLESS STEEL	a/r	48 spoke chrome wire wheels	CHF 18.50
6	7H1806CP	SPOKE, INNER/SHORT, 5.01", CHROMED STAINLESS STEEL	a/r	48 spoke chrome wire wheels	CHF 18.50
6	17H8619	SPOKE, OUTER/LONG, 6.20", MILD STEEL	a/r	60 spoke painted wire wheels	CHF 13.90
6	17H8620	SPOKE, INNER/SHORT, 5.12", STANDARD	a/r	60 spoke painted wire wheels	CHF 13.90
6	17H8619CP	SPOKE, OUTER/LONG, 6.20", CHROMED STAINLESS STEEL	a/r	60 spoke chrome wire wheels	CHF 18.50
6	17H8620CP	SPOKE, INNER/SHORT, 5.12", CHROMED STAINLESS STEEL	a/r	60 spoke chrome wire wheels	CHF 18.50
6	37H3650	SPOKE OUTER/LONG 6.25", CHROMED STAINLESS STEEL	a/r	72 spoke chrome wire wheels	CHF 16.50
6	37H3649	SPOKE INNER/SHORT, 5.5", CHROMED STAINLESS STEEL	a/r	72 spoke chrome wire wheels	CHF 18.50
7	7H1709	NIPPLE CARBON STEEL	a/r	painted wire wheels	CHF 1.75
7	37H3651	NIPPLE CHROMED STAINLESS STEEL	a/r	chrome wire wheels	CHF 3.60
8	452-755	INNER TUBE 155/165X15"	a/r		CHF 46.15
8	452-765	INNER TUBE 175/185X15"	a/r		CHF 57.20
9	452-750	RIM BAND 15"	a/r		CHF 16.30
10	AHH7317A	KNOCK-ON 2 EAR 12TPI RH CENTER CAP WITH MG LOGO	2	with MG logo	CHF 67.45
10	AHH7318A	KNOCK-ON 2 EAR 12TPI LH CENTER CAP WITH MG-LOGO	2	with MG logo	CHF 67.45
10	AHH7317	KNOCK-ON 2 EAR 12TPI RH PLAIN CENTER CAP	2		CHF 65.85
10	AHH7318	KNOCK-ON 2 EAR 12TPI LH PLAIN CENTER CAP	2		CHF 65.85
10	AHH73173	KNOCK-ON 3 EARED, PLAIN, 12 TPI, RH CENTER CAP	2		availability request (add quantity to basket, offer follows)
10	AHH73183	WHEEL SPINNER, 3 EARED, PLAIN, 12 TPI, LH	2		CHF 104.35
11	AHH7315AMWS	KNOCK ON OCTAGONE 12TPI RH MG CENTER CAP	2	with MG logo	CHF 72.50
11	AHH7316AMWS	K-ON OCT 12TPI LH MG MWS	2	with MG logo	CHF 72.50
11	AHH7315MWS	KNOCK-ON OCTAGONAL 12TPI RH PLAIN MWS	2		CHF 68.45
11	AHH7316MWS	WHEEL SPINNER, KNOCK-ON OCTAGONAL 12TPI LH PLAIN	2		CHF 68.45
12	11B5166	HAMMER, COPPER/COPPER, 1.26 KG	1	as original, 2.7 lbs.	CHF 68.05
12	C27290	MALLET COPPER/HIDE	1	2 lbs.	CHF 70.90
14	11H1051	TOOL, HUB CAP REMOVER	1		CHF 12.55
15	AHH5124K	JACK WITH HANDLE, SCREW TYPE	1		CHF 201.95
16	AJJ281K	TYRE IRON SET (2 X IRONS IN BLISTER PACK)	1		availability request (add quantity to basket, offer follows)
17	AHH5080	STARTING HANDLE	1	faithful repro of original	CHF 108.05
18	31G5961	WHEEL BRACE MGA 3/4 HOT= ACA9913 = NCA 30/10/14 NL	1	steel wheels only	availability request (add quantity to basket, offer follows)
19	AHH5839	SPANNER OCTAGONAL	1	wire wheels only	CHF 14.60
20			1
21	523638A	TYRE PUMP - HAND	1		availability request (add quantity to basket, offer follows)
NI	411EHW	WIRE WHEEL BALANCING KIT	1		CHF 142.40
