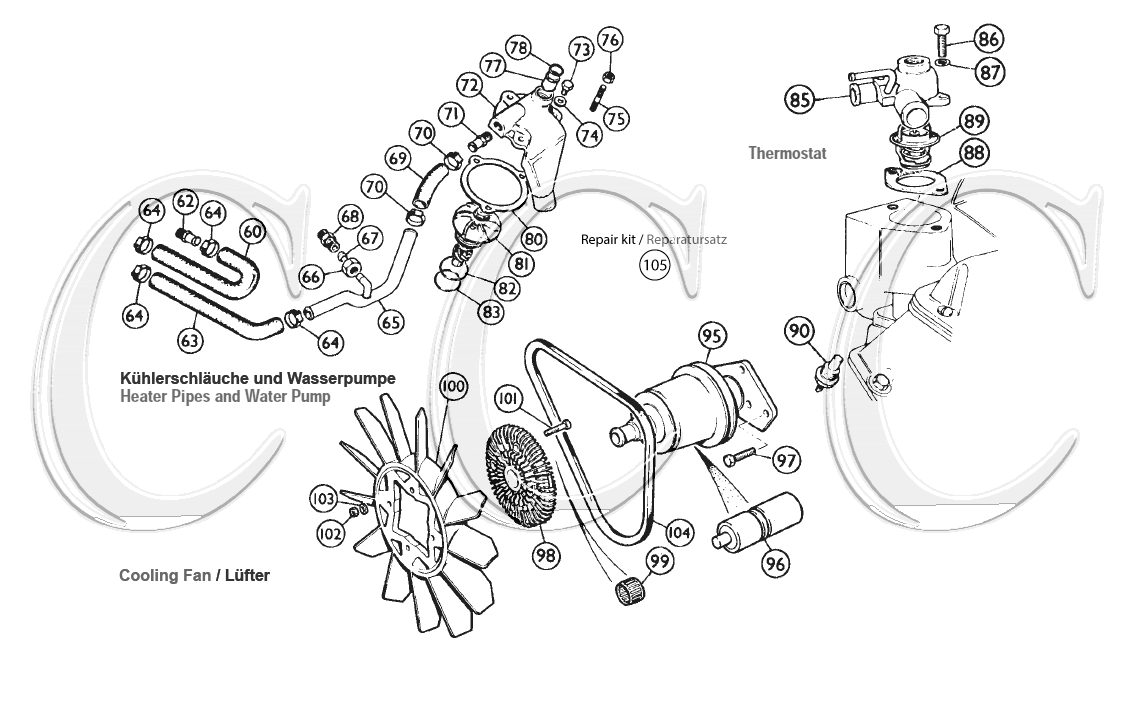

COOLING SYSTEM

Ill.no.	Partno.	Part	Quantity required	Info	Price
60	UKC6775	HOSE, HEATER, UPPER	1		CHF 14.55

Ill.no.	Partno.	Part	Quantity required	Info	Price
62	148394	ADAPTOR HEATER PIPE	1		CHF 24.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
63	UKC3895	HOSE HEATER RETURN UPPER TR7	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
64	CS4020	WIRECLIP1.1/16-1.1/4	4		CHF 3.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
65	TKC1241	PIPE HEATER RETURN	1		CHF 143.35

Ill.no.	Partno.	Part	Quantity required	Info	Price
66	153199	TUBE NUT FEMALE	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
67	TL11	OLIVE, SEALING TUBE 1/2"	1		CHF 3.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
68	153198	ADAPTOR MALE - MALE	1	return pipe to inlet manifold	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
69	UKC4457	HOSE TR7 CONNECTOR WATERPUMP	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
70	CS4022	WIRECLIP 1.3/16-1.3/8	2		CHF 3.10

Ill.no.	Partno.	Part	Quantity required	Info	Price
71	UKC1802	ADAPTOR HOSE TO WATERPUMP	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
72	RKC395	USE RKC395U	1	To engine CG20125
72	RKC395U	WATER PUMP COVER - 6 VANE	1	To engine CG20125	availability request (add quantity to basket, offer follows)
72	PKC437	WATERPUMP OUTLET OHC	1	From engine CG20126 On	CHF 68.85
72	RKC2850	WATERPUMP COVER, 12 VANE USA SPEC	1	USA spec. alternative	availability request (add quantity to basket, offer follows)
72	RKC3188	WATERPUMP COVER TR7 P.I. USA SPEC	1	USA spec alternative	availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
73	SH605061	SCREW 5/16" UNF X 3/4"	3	To engine CG33140	CHF 0.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
74	GHF301	WASHER 5/16 X 5/8 M8	3	To engine CG33140	CHF 0.40

Ill.no.	Partno.	Part	Quantity required	Info	Price
75	FHS2511	STUD 5/16" UNF X 1.3/8"	3	From engine CG33141	CHF 2.40

Ill.no.	Partno.	Part	Quantity required	Info	Price
76	GHF201	NUT 5/16 UNF	3	From engine CG33141	CHF 0.35

Ill.no.	Partno.	Part	Quantity required	Info	Price
77	UKC2538	WATER TUBE CONNECTOR	1		CHF 26.95

Ill.no.	Partno.	Part	Quantity required	Info	Price
78	TRS1114	O RING	2		CHF 1.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
80	145017	GASKET WATER PUMP 0.010	a/r	alternatives	CHF 3.35
80	149852	GASKET WATER PUMP 0.020"	a/r	alternatives	CHF 4.50
80	149853	GASKET WATER PUMP 0.030"	a/r	alternatives	CHF 3.35

Ill.no.	Partno.	Part	Quantity required	Info	Price
81	GWP207	WATER PUMP 6 VANE	1	To engine CG20125	CHF 442.75
81	GWP206	WATER PUMP 12 VANE	1	From engine CG20126	CHF 442.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
82	148170	WATER PUMP O RING, LARGER	1		CHF 1.05

Ill.no.	Partno.	Part	Quantity required	Info	Price
83	148169	WATER PUMP BODY 'O' RING (SMALL), LOWER	1		CHF 2.55


85		THERMOSTAT COVER	1	see no. 8, 27, 42 in category RADIATOR

Ill.no.	Partno.	Part	Quantity required	Info	Price
86	GHF163	SCREW 5/16 UNC X 1IN	2	all ACG commission nos.	CHF 1.25
86	SH505101	SCREW 5/16" UNC X 1 1/4"	1	all TCG commission nos. and VIN nos.	CHF 2.00
86	GHF163	SCREW 5/16 UNC X 1IN	1	all TCG commission nos. and VIN nos.	CHF 1.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
87	GHF332	WASHER SPRING 5/16	2		CHF 0.25

Ill.no.	Partno.	Part	Quantity required	Info	Price
88	115467	GASKET, THERMOSTAT HOUSING	1		CHF 0.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
89	RTC3692	THERMOSTAT 74°C, WITH BYPASS	1		CHF 29.50

Ill.no.	Partno.	Part	Quantity required	Info	Price
90	GTR108	TEMPERATURE TRANSMITTER	1		CHF 18.15

Ill.no.	Partno.	Part	Quantity required	Info	Price
95	UKC1626CCC	SHAFT & BEARING FAN PULLEY BLOCK	1		CHF 89.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
96	UKC1626CCC	SHAFT & BEARING FAN PULLEY BLOCK	1		CHF 89.65

Ill.no.	Partno.	Part	Quantity required	Info	Price
97	SH505071	SCREW 5/16" UNC X 7/8"	3	long	CHF 0.60
97	SH505061	SCREW 5/16" UNC X 3/4"	1	short	CHF 0.90

Ill.no.	Partno.	Part	Quantity required	Info	Price
98	TKC101	VISCOUS COUPLING	1		CHF 180.85

Ill.no.	Partno.	Part	Quantity required	Info	Price
99	UKC759	TOLERANCE RING	1	attaches coupling to pulley	CHF 18.00

Ill.no.	Partno.	Part	Quantity required	Info	Price
100	PKC1281	Fan Blades TR7	1		availability request (add quantity to basket, offer follows)
100	PKC1281U	FAN	1		availability request (add quantity to basket, offer follows)

Ill.no.	Partno.	Part	Quantity required	Info	Price
101	GHF102	BOLT 1/4 UNFX1-1/2IN	4		CHF 1.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
102	NH604041	USE GHF200	4
102	GHF200	NUT 1/4 UNF	4		CHF 0.60

Ill.no.	Partno.	Part	Quantity required	Info	Price
103	GHF300	WASHER 1/4 X 1/2 OD	4		CHF 0.45

Ill.no.	Partno.	Part	Quantity required	Info	Price
104	GCB10900	FAN BELT, LENGTH 900MM, WIDTH 10MM	1		CHF 12.75

Ill.no.	Partno.	Part	Quantity required	Info	Price
60	UKC6775	HOSE, HEATER, UPPER	1		CHF 14.55
62	148394	ADAPTOR HEATER PIPE	1		CHF 24.90
63	UKC3895	HOSE HEATER RETURN UPPER TR7	1		availability request (add quantity to basket, offer follows)
64	CS4020	WIRECLIP1.1/16-1.1/4	4		CHF 3.10
65	TKC1241	PIPE HEATER RETURN	1		CHF 143.35
66	153199	TUBE NUT FEMALE	1		availability request (add quantity to basket, offer follows)
67	TL11	OLIVE, SEALING TUBE 1/2"	1		CHF 3.95
68	153198	ADAPTOR MALE - MALE	1	return pipe to inlet manifold	availability request (add quantity to basket, offer follows)
69	UKC4457	HOSE TR7 CONNECTOR WATERPUMP	1		availability request (add quantity to basket, offer follows)
70	CS4022	WIRECLIP 1.3/16-1.3/8	2		CHF 3.10
71	UKC1802	ADAPTOR HOSE TO WATERPUMP	1		availability request (add quantity to basket, offer follows)
72	RKC395	USE RKC395U	1	To engine CG20125
72	RKC395U	WATER PUMP COVER - 6 VANE	1	To engine CG20125	availability request (add quantity to basket, offer follows)
72	PKC437	WATERPUMP OUTLET OHC	1	From engine CG20126 On	CHF 68.85
72	RKC2850	WATERPUMP COVER, 12 VANE USA SPEC	1	USA spec. alternative	availability request (add quantity to basket, offer follows)
72	RKC3188	WATERPUMP COVER TR7 P.I. USA SPEC	1	USA spec alternative	availability request (add quantity to basket, offer follows)
73	SH605061	SCREW 5/16" UNF X 3/4"	3	To engine CG33140	CHF 0.65
74	GHF301	WASHER 5/16 X 5/8 M8	3	To engine CG33140	CHF 0.40
75	FHS2511	STUD 5/16" UNF X 1.3/8"	3	From engine CG33141	CHF 2.40
76	GHF201	NUT 5/16 UNF	3	From engine CG33141	CHF 0.35
77	UKC2538	WATER TUBE CONNECTOR	1		CHF 26.95
78	TRS1114	O RING	2		CHF 1.25
80	145017	GASKET WATER PUMP 0.010	a/r	alternatives	CHF 3.35
80	149852	GASKET WATER PUMP 0.020"	a/r	alternatives	CHF 4.50
80	149853	GASKET WATER PUMP 0.030"	a/r	alternatives	CHF 3.35
81	GWP207	WATER PUMP 6 VANE	1	To engine CG20125	CHF 442.75
81	GWP206	WATER PUMP 12 VANE	1	From engine CG20126	CHF 442.75
82	148170	WATER PUMP O RING, LARGER	1		CHF 1.05
83	148169	WATER PUMP BODY 'O' RING (SMALL), LOWER	1		CHF 2.55

85		THERMOSTAT COVER	1	see no. 8, 27, 42 in category RADIATOR
86	GHF163	SCREW 5/16 UNC X 1IN	2	all ACG commission nos.	CHF 1.25
86	SH505101	SCREW 5/16" UNC X 1 1/4"	1	all TCG commission nos. and VIN nos.	CHF 2.00
86	GHF163	SCREW 5/16 UNC X 1IN	1	all TCG commission nos. and VIN nos.	CHF 1.25
87	GHF332	WASHER SPRING 5/16	2		CHF 0.25
88	115467	GASKET, THERMOSTAT HOUSING	1		CHF 0.90
89	RTC3692	THERMOSTAT 74°C, WITH BYPASS	1		CHF 29.50
90	GTR108	TEMPERATURE TRANSMITTER	1		CHF 18.15
95	UKC1626CCC	SHAFT & BEARING FAN PULLEY BLOCK	1		CHF 89.65
96	UKC1626CCC	SHAFT & BEARING FAN PULLEY BLOCK	1		CHF 89.65
97	SH505071	SCREW 5/16" UNC X 7/8"	3	long	CHF 0.60
97	SH505061	SCREW 5/16" UNC X 3/4"	1	short	CHF 0.90
98	TKC101	VISCOUS COUPLING	1		CHF 180.85
99	UKC759	TOLERANCE RING	1	attaches coupling to pulley	CHF 18.00
100	PKC1281	Fan Blades TR7	1		availability request (add quantity to basket, offer follows)
100	PKC1281U	FAN	1		availability request (add quantity to basket, offer follows)
101	GHF102	BOLT 1/4 UNFX1-1/2IN	4		CHF 1.45
102	NH604041	USE GHF200	4
102	GHF200	NUT 1/4 UNF	4		CHF 0.60
103	GHF300	WASHER 1/4 X 1/2 OD	4		CHF 0.45
104	GCB10900	FAN BELT, LENGTH 900MM, WIDTH 10MM	1		CHF 12.75

Commission Number	The commission number is located on the right hand front strut mounting. (USA cars used a different range of commission numbers)
ACG1	- and future to 1978
TCG100001	- 200000, 1979 only
VIN200001	- 402000, 1980 only
VIN402001	- onwards, 1981 and future

Body Number	The body number is located on the front panel above and to the left of the radiator cooling fan.
T1CG	- onwards
1CG	- onwards

Engine Number	The engine number is located at the top of the cylinder block on the right hand side. (Engines for USA, Canada, Australia & Japan used different engine number prefixes)
CG1	- onwards

Gearbox Number 4 speed	The 4 speed gearbox number is on the top right hand side of the gearbox housing next to the top cover plate.
CG1	- onwards

Gearbox Number 5 speed	The 5 speed gearbox number is on the left hand side at the front of the main gear case.
CL1	- onwards

Automatic gearbox number	The Automatic gearbox number is on the manufacturer's plate on the left hand side of the casing.
027M1	- onwards (type 65)
076N1	- onwards (type 66)

Rear Axle Number	The rear axle number is located beneath the differential case.
CG1	- onwards (3,63:1 ratio; 4 speed manual)
CH1	- onwards (3,9:1 ratio; 5 speed manual)
CT1	- onwards (3,27:1 ratio; automatic)

Trim Colour	The trim colour of your car is identified by a three letter code on the commission/VIN plate. If you've got black, navy or one of the contrasting check materials then you should be able to sort it. Golden Tan (a colour used after 1979) and beige (a colour used between 1975 and 1980) are a little more difficult if you haven't a sample to go by. The solution is easy, on your commission/VIN plate, 'AAA' is beige, 'AAM' is golden tan (and for the record, 'RAG' is golden tan with check inserts).

Production Details
The TR7, revealed in January 1975 was totally different to any TR which had gone before - indeed many said that the car should not have borne the TR title since it appeared to be in no way related to its forerunners. From the original design of Sports 20 TR1 (designed by the team of Walter Belgrove and first seen at Earls Court in October 1952) to the TR6 'brick' there was a continuity of design.

Chassis
The chassis altered gradually underneath each new body design. The mechanical changes were intertwined with uprated engines, but here was a totally new concept facing up to the challenges of the North American markets. The car was styled by Harris Mann of the Austin Morris division, mechanical design was entrusted to Charles Spencer ('Spen') King of Rover, a devout believer in a well located live rear axle (hence the apparently retrograde step from the independent rear suspension of the TR4A, TR5 and TR6).

Bodywork
The bodywork consisted of a strong unitary construction bodyshell which gained extra rigidity from the roof (specified to deal with expected Federal roll over regulations due to be announced shortly after) and included strengthening pillars inside the doors to guard against injuries during broadside road accidents. Early prototypes of the Fury (an earlier design project) had proved that this construction would be sufficiently strong for use even without a roof; an important point for later production of the convertible models introduced in 1979 (USA) and 1980 (UK).

Engine
The engine was an overhead cam, alloy head unit of 1998cc, inclined over at 45°, variations of which were being used in the Saab 99 (jointly developed by Saab), and the Dolomite 1850. It had also been used in an experimental Spitfire as far back as 1966. Compression ratio for Non Federal markets was 9,25:1, twin SU HS6 carburettors were fitted to produce 105bhp. Federal markets opted for Zenith Stromberg carburettors and lots of emission control which sadly dragged the power output down to 92bhp as well as increasing fuel consumption.

Gearbox
The gearbox was originally a four speed unit - as used on the Marina and Spitfire, and was used in conjunction with a light duty rear axle and the Spitfire rear differential ratio of 3,63:1. Rear brakes fitted to the axle used 8" x 1,5" drums. The optional five speed unit (becoming standard in 1978 when production of the TR7 & new TR8 moved to Coventry) used a stronger rear axle with a 3,9:1 differential ratio coupled to rear brake drums of 9" x 1,75". The '77mm box' (so called because of the spacing between the mainshaft and layshaft centres) was also used on the new Rover 3500, became well known as a reliable long lasting unit. Fourth gear was a direct drive with fifth an overdrive gear. For competition use the early TR7's used the Dolomite Sprint gearbox with overdrive until 1976, when it was replaced by the Rover 3500 '77 mm' gearbox. Alongside the five speed box was an automatic transmission version using a 3,27:1 rear differential. The Borg Warner 65 type three speed unit had been available from 1975.

Brakes
Although the rear brakes varied depending upon the axle used, the front brakes of the TR7 used only 9,7" discs (the TR8 used thicker discs of similar diameter with larger pads). The brake system incorporated a direct acting servo unit and had dual line hydraulics as standard.

TR7 Production
The TR7 was built in three different locations starting at the Speke plant in Liverpool (last car built: ACG44328). Production shifted to Canley in Coventry (first car built: TCG100000) in late 1978 after a crippling strike led to the closure of the Speke plant. Bodies were then produced by Pressed Steel Fisher. In 1980 production moved to the Rover plant at Solihull and continued there until the end of production in October 1981. For some time, the TR7 was produced concurrently at Canley and Solihull. TR8 was also built at all three factories (a handful of prototypes were built at Speke). As a final point of interest it has often been said that build quality reached a pinnacle during the Canley years and, was at its worst during the Speke production period, a worthwhile point to remember when purchasing a TR7.

TR8 Production
Although some TR8's escaped from strike bound captivity via MG at Abingdon to the USA in 1979, the TR8 was introduced mainly to the USA in convertible form during 1980. It incorporated the Rover 3500cc V8 engine coupled to the five speed box and axle ratio of 3,08:1. The only major external differences were in the bonnet pressing and badging, plus an extra exhaust pipe!
