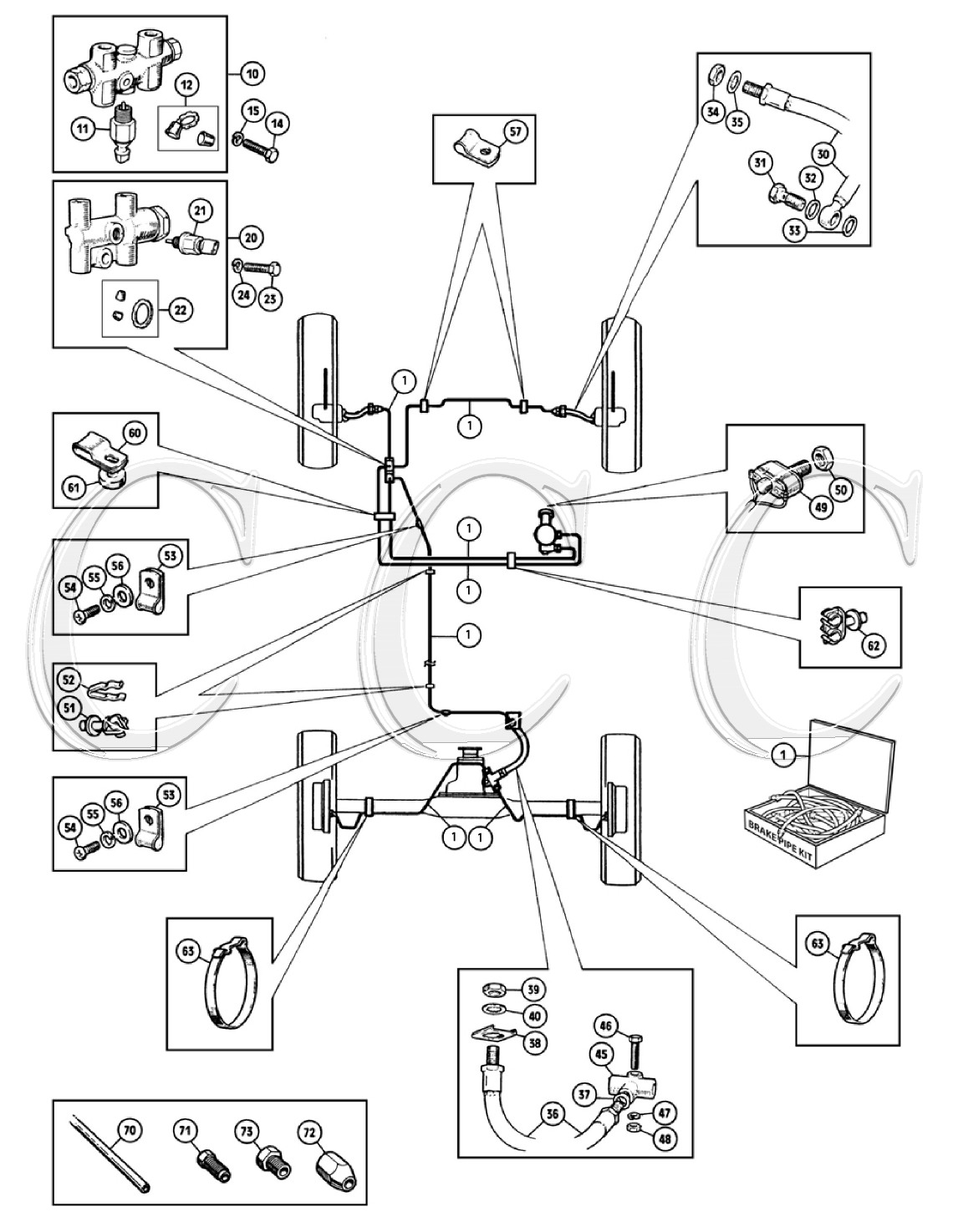

DUAL LINE SYSTEM - MIDGET 1500
unillustrated articles
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 1 | GAC5061 | BRAKE PIPE SET, COPPER, M1500 DUAL LINE |
1 | CHF 167.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 2 | GPP66AT | BRAKE PIPE MALE/MALE KUNIFER |
1 | availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 3 | GPP60AA | BRAKE PIPE, 60", COPPER/NICKEL, 3/8" UNF MALE/MALE |
1 | CHF 46.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 4 | GPP42CT | BRAKE PIPE FEMALE/MALE KUNIFER |
1 | availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 5 | GPP10CT | BRAKE PIPE, 10", COPPER/NICKEL, 3/8" UNF FEMALE X 7/16" UNF MALE |
1 | CHF 25.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 6 | GPP82AC | BRAKE PIPE, 82", COPPER/NICKEL, 3/8" UNF MALE/FEMALE |
1 | CHF 45.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 7 | GPP20AA | BRAKE PIPE, 20", COPPER/NICKEL, 3/8" UNF MALE/MALE |
1 | CHF 32.75 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 8 | GPP32AA | BRAKE PIPE, 32", COPPER/NICKEL, 3/8" UNF MALE/MALE |
1 | CHF 44.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 10 | AAU2583 | VALVE ASSEMBLY, PDWA, (CAST IRON) |
1 | original, (cast iron) |
availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 11 | AAU2454 | BRAKE FAILURE SWITCH |
1 | original, (cast iron) | CHF 36.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 12 | BAU1775 |
USE BAU1775ACCC
|
1 | original, (cast iron) | ||
| 12 | BAU1775ACCC | REPAIR KIT PDWA VALVE ALUMINIUM OR CAST IRON |
1 | original, (cast iron) | availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 14 | BH604141 | BOLT 1/4UNFX1 3/4IN |
1 | original, (cast iron) |
CHF 11.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 15 | GHF331 | WASHER SPRING 1/4" |
1 | original, (cast iron) | CHF 0.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 20 | 13H5905 | VALVE ASSEMBLY PDWA BRASS |
1 | replacement, (brass) |
availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 21 | AAU1700A | SWITCH BRAKE FAILURE |
1 | replacement, (brass) | CHF 70.05 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 22 | BAU1704A | PDWA SEAL KIT BRASS VALVE TYPE |
1 | replacement, (brass) | CHF 31.75 | |
| 22 | BAU1704ACCC | REPAIR KIT PDWA VALVE BRASS INCL PISTON |
1 | replacement, (brass) | CHF 93.50 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 23 | GHF101 | SCREW 1/4 UNF X 1IN |
1 | replacement, (brass) |
CHF 0.30 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 24 | GHF331 | WASHER SPRING 1/4" |
1 | replacement, (brass) |
CHF 0.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 31 | C5192A | 3/8 BRAKE BANJO BOLT |
2 | CHF 15.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 32 | 3H550 | COPPER WASHER 7/16" X 0.7" |
2 | bolt head to banjo | CHF 1.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 33 | 233220A | COPPER WASHER 3/8ID 5/8 OD |
2 | banjo to caliper | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 34 | GHF202 | NUT PLAIN 3/8 UNF |
2 | CHF 0.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 35 | GHF323 | WASHER STAR 3/8" ID |
2 | CHF 0.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 37 | 233220A | COPPER WASHER 3/8ID 5/8 OD |
2 | rear hose to 3 way union | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 38 | 1G9198 | BRAKE PIPE LOCKPLATE |
2 | CHF 6.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 39 | GHF202 | NUT PLAIN 3/8 UNF |
2 | CHF 0.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 40 | GHF323 | WASHER STAR 3/8" ID |
2 | CHF 0.45 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 45 | 3H2424 | UNION, 3WAY, REAR |
1 | CHF 16.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 46 | BH604101 | BOLT 1/4 UNF X 1.25 |
1 | CHF 1.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 47 | GHF331 | WASHER SPRING 1/4" |
1 | CHF 0.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 48 | GHF200 | NUT 1/4 UNF |
1 | CHF 0.20 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 49 | BHA4675 | SWITCH BRAKE LIGHT |
1 | fits on pedal box | CHF 19.65 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 50 | NT606041 | NUT 3/8 UNF THIN |
1 | CHF 0.55 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 51 | GHF1192 | CLIP PLASTIC, ALTERNATIVE 0.187 DIA (3/16") |
2 | pipe to floor support channel | CHF 1.05 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 52 | 6K35 | CLIP, METAL, ALTERNATIVE |
2 | pipe to floor support channel | CHF 2.25 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 53 | PCR307 | P CLIP, 3/16" CABLE DIAMETER X 7/32" |
2 | pipe to heel board & footwell | CHF 4.90 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 54 | PMZ308 | SCREW, 3/16" UNF X 1/2", PAN HEAD |
2 | pipe to heel board & footwell | CHF 1.05 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 55 | WL700101 | WASHER SPRING 3/16 |
2 | CHF 0.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 56 | GHF306 | WASHER 3/16 X 3/8 OD |
2 | CHF 0.20 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 57 | PCR311 | P CLIP, 3/16" CABLE DIAMETER X 11/32" |
2 | pipe to steering rack mount | CHF 7.40 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 60 | AHA8683 | P CLIP BRAKE GAUGE |
1 | Brake pipes to screw securing pedal box aperture blanking plate | CHF 7.15 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 61 | AHH6247 | SPACER NCA |
1 | between clip & blanking plate | availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 62 | 13H9593 | PIPE CLIP - DOUBLE |
5 | For brake pipes between master cylinder and PDWA valve | availability request (add quantity to basket, offer follows) |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 70 | MPKF125 | PIPE, BRAKE & CLUTCH, KUNIFER, 3/16" OD 25FT ROLL |
7 metre roll | CHF 64.35 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 71 | TM606031 | UNION MALE 3/8"UNF, FOR 3/16" UNF PIPE |
3/8” UNF thread | CHF 2.60 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 72 | AEHU1A | PIPENUT FEMALE 3/8" FOR 3/16UNF |
3/8” UNF thread | CHF 5.10 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 73 | BHA4706 | UNION MALE 3/16 PIPE |
7/16” UNF thread | CHF 5.90 |
| Ill.no. | Partno. | Part | Quantity required | Info | Price | |
|---|---|---|---|---|---|---|
| 1 | GAC5061 |
BRAKE PIPE SET, COPPER, M1500 DUAL LINE
|
1 | CHF 167.45 | ||
| 2 | GPP66AT |
BRAKE PIPE MALE/MALE KUNIFER
|
1 | availability request (add quantity to basket, offer follows) | ||
| 3 | GPP60AA |
BRAKE PIPE, 60", COPPER/NICKEL, 3/8" UNF MALE/MALE
|
1 | CHF 46.30 | ||
| 4 | GPP42CT |
BRAKE PIPE FEMALE/MALE KUNIFER
|
1 | availability request (add quantity to basket, offer follows) | ||
| 5 | GPP10CT |
BRAKE PIPE, 10", COPPER/NICKEL, 3/8" UNF FEMALE X 7/16" UNF MALE
|
1 | CHF 25.75 | ||
| 6 | GPP82AC |
BRAKE PIPE, 82", COPPER/NICKEL, 3/8" UNF MALE/FEMALE
|
1 | CHF 45.45 | ||
| 7 | GPP20AA |
BRAKE PIPE, 20", COPPER/NICKEL, 3/8" UNF MALE/MALE
|
1 | CHF 32.75 | ||
| 8 | GPP32AA |
BRAKE PIPE, 32", COPPER/NICKEL, 3/8" UNF MALE/MALE
|
1 | CHF 44.15 | ||
| 10 | AAU2583 |
VALVE ASSEMBLY, PDWA, (CAST IRON)
|
1 | original, (cast iron) |
availability request (add quantity to basket, offer follows) | |
| 11 | AAU2454 |
BRAKE FAILURE SWITCH
|
1 | original, (cast iron) | CHF 36.15 | |
| 12 | BAU1775 |
USE BAU1775ACCC
|
1 | original, (cast iron) | ||
| 12 | BAU1775ACCC |
REPAIR KIT PDWA VALVE ALUMINIUM OR CAST IRON
|
1 | original, (cast iron) | availability request (add quantity to basket, offer follows) | |
| 14 | BH604141 |
BOLT 1/4UNFX1 3/4IN
|
1 | original, (cast iron) |
CHF 11.30 | |
| 15 | GHF331 |
WASHER SPRING 1/4"
|
1 | original, (cast iron) | CHF 0.55 | |
| 20 | 13H5905 |
VALVE ASSEMBLY PDWA BRASS
|
1 | replacement, (brass) |
availability request (add quantity to basket, offer follows) | |
| 21 | AAU1700A |
SWITCH BRAKE FAILURE
|
1 | replacement, (brass) | CHF 70.05 | |
| 22 | BAU1704A |
PDWA SEAL KIT BRASS VALVE TYPE
|
1 | replacement, (brass) | CHF 31.75 | |
| 22 | BAU1704ACCC |
REPAIR KIT PDWA VALVE BRASS INCL PISTON
|
1 | replacement, (brass) | CHF 93.50 | |
| 23 | GHF101 |
SCREW 1/4 UNF X 1IN
|
1 | replacement, (brass) |
CHF 0.30 | |
| 24 | GHF331 |
WASHER SPRING 1/4"
|
1 | replacement, (brass) |
CHF 0.55 | |
| 30 | GBH157 |
BRAKE HOSE, STANDARD
|
2 | standard | CHF 17.30 | |
| 30 | GBH157Z |
BRAKE HOSE, STANDARD, AFTERMARKET
|
2 | aftermarket | CHF 15.20 | |
| 30 | GBH157SS |
BRAKE HOSE, STAINLESS STEEL BRAIDED
|
2 | stainless steel | CHF 58.95 | |
| 31 | C5192A |
3/8 BRAKE BANJO BOLT
|
2 | CHF 15.25 | ||
| 32 | 3H550 |
COPPER WASHER 7/16" X 0.7"
|
2 | bolt head to banjo | CHF 1.25 | |
| 33 | 233220A |
COPPER WASHER 3/8ID 5/8 OD
|
2 | banjo to caliper | CHF 1.10 | |
| 34 | GHF202 |
NUT PLAIN 3/8 UNF
|
2 | CHF 0.15 | ||
| 35 | GHF323 |
WASHER STAR 3/8" ID
|
2 | CHF 0.45 | ||
| 36 | GBH158 |
BRAKE HOSE
|
2 | standard | CHF 18.50 | |
| 36 | GBH158Z |
BRAKE HOSE, STANDARD, AFTERMARKET
|
2 | aftermarket | CHF 14.60 | |
| 36 | GBH158SS |
BRAKE HOSE, STAINLESS STEEL BRAIDED
|
2 | stainless steel | CHF 58.05 | |
| 37 | 233220A |
COPPER WASHER 3/8ID 5/8 OD
|
2 | rear hose to 3 way union | CHF 1.10 | |
| 38 | 1G9198 |
BRAKE PIPE LOCKPLATE
|
2 | CHF 6.25 | ||
| 39 | GHF202 |
NUT PLAIN 3/8 UNF
|
2 | CHF 0.15 | ||
| 40 | GHF323 |
WASHER STAR 3/8" ID
|
2 | CHF 0.45 | ||
| 45 | 3H2424 |
UNION, 3WAY, REAR
|
1 | CHF 16.60 | ||
| 46 | BH604101 |
BOLT 1/4 UNF X 1.25
|
1 | CHF 1.10 | ||
| 47 | GHF331 |
WASHER SPRING 1/4"
|
1 | CHF 0.55 | ||
| 48 | GHF200 |
NUT 1/4 UNF
|
1 | CHF 0.20 | ||
| 49 | BHA4675 |
SWITCH BRAKE LIGHT
|
1 | fits on pedal box | CHF 19.65 | |
| 50 | NT606041 |
NUT 3/8 UNF THIN
|
1 | CHF 0.55 | ||
| 51 | GHF1192 |
CLIP PLASTIC, ALTERNATIVE 0.187 DIA (3/16")
|
2 | pipe to floor support channel | CHF 1.05 | |
| 52 | 6K35 |
CLIP, METAL, ALTERNATIVE
|
2 | pipe to floor support channel | CHF 2.25 | |
| 53 | PCR307 |
P CLIP, 3/16" CABLE DIAMETER X 7/32"
|
2 | pipe to heel board & footwell | CHF 4.90 | |
| 54 | PMZ308 |
SCREW, 3/16" UNF X 1/2", PAN HEAD
|
2 | pipe to heel board & footwell | CHF 1.05 | |
| 55 | WL700101 |
WASHER SPRING 3/16
|
2 | CHF 0.15 | ||
| 56 | GHF306 |
WASHER 3/16 X 3/8 OD
|
2 | CHF 0.20 | ||
| 57 | PCR311 |
P CLIP, 3/16" CABLE DIAMETER X 11/32"
|
2 | pipe to steering rack mount | CHF 7.40 | |
| 60 | AHA8683 |
P CLIP BRAKE GAUGE
|
1 | Brake pipes to screw securing pedal box aperture blanking plate | CHF 7.15 | |
| 61 | AHH6247 |
SPACER NCA
|
1 | between clip & blanking plate | availability request (add quantity to basket, offer follows) | |
| 62 | 13H9593 |
PIPE CLIP - DOUBLE
|
5 | For brake pipes between master cylinder and PDWA valve | availability request (add quantity to basket, offer follows) | |
| 63 | ACH5375 |
USE ACH8650
|
2 | brake pipe to rear axle | ||
| 63 | ACH8650 |
PIPE STRAP
|
2 | brake pipe to rear axle | CHF 6.05 | |
| 70 | MPKF125 |
PIPE, BRAKE & CLUTCH, KUNIFER, 3/16" OD 25FT ROLL
|
7 metre roll | CHF 64.35 | ||
| 71 | TM606031 |
UNION MALE 3/8"UNF, FOR 3/16" UNF PIPE
|
3/8” UNF thread | CHF 2.60 | ||
| 72 | AEHU1A |
PIPENUT FEMALE 3/8" FOR 3/16UNF
|
3/8” UNF thread | CHF 5.10 | ||
| 73 | BHA4706 |
UNION MALE 3/16 PIPE
|
7/16” UNF thread | CHF 5.90 | ||
| NI |
